|Current Rating:||1.0AMP||Operating Temperature:||-40℃ To+105℃|
|Color:||Black||Withstand Voltage:||500V AC/DC|
1.0AMP Right Angle SMT Connector,
500V Right Angle SMT Connector,
1.27x2.54mm PCBA Box Header
1.27x2.54mm Box Header Straight Right Angle SMT Connector PCBA 500V 1.0AMP
1.Rated Current: 1.0AMP
2.Contact Resistance: 20mΩ Max
3.Withstand Voltage: 500V AC/DC
4.Insulation Resistance: 1000mΩ Min
5.Operation Tempature: -40℃-+105℃

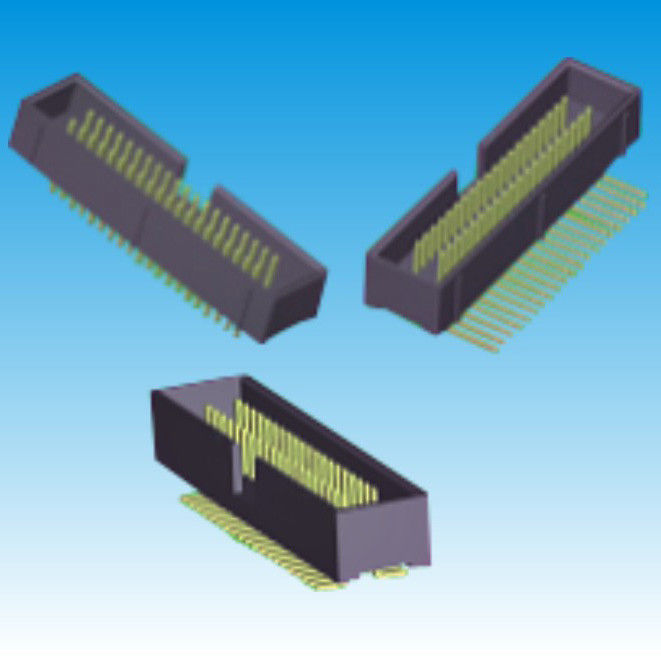

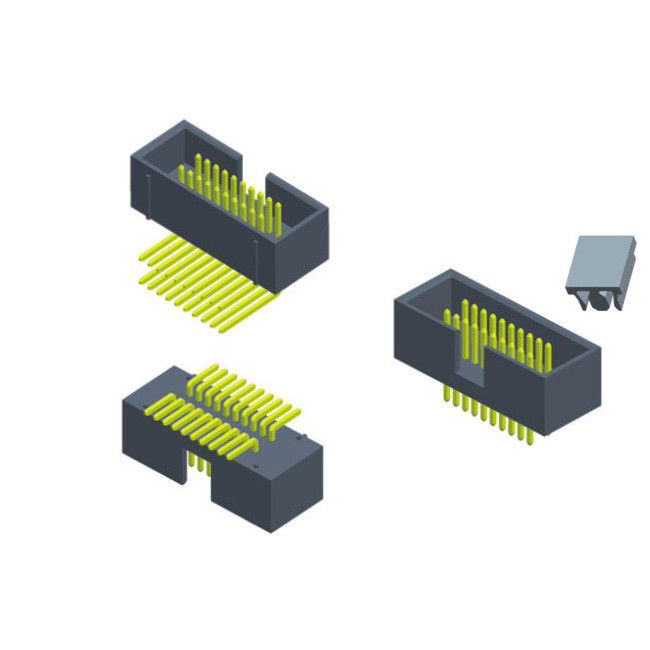

Box header is usually composed of a square plastic socket and a number of neatly arranged square pins.Commonly used peripheral sizes are 1.27 pitch, 2.0 pitch, and 2.54 pitch. According to the difference in pitch, the diameter of the square pin header used is also changed accordingly. The contact surface between the bottom and the PCB board can be designed as SMT patch (as shown) or DIP 180 degrees.
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
