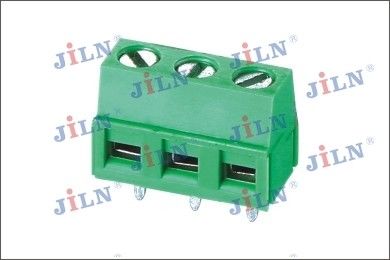

Brass 250V M2.5 JL127 PCB Terminal Connector 26AWG PA66 5.08mm Pitch

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: JL127
Minimum Order Quantity: 1000PCS
Price: 0.01-1USD
Packaging Details: Tube packing/PE bag packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000000PCS per Month
Insulator Material:: PA66 Rated Current: 300V,12A
Withstand Voltage: 2000VAC/DC Insulation Temperature: -40℃~+105℃
Name: Terminal Block Connector Pitch: 5.08mm Pitch
High Light:

JL127 PCB Terminal Connector

,

M2.5 PCB Terminal Connector

,

26AWG PA66 Pluggable Terminal Block

Brass 250V M2.5 JL127 PCB Terminal Connector 26AWG 5.00 5.08mm Pitch

Specifications:


Rated Currency: 300V,12A
Dieletric Strength: AC2000V/1 Minute
Insularion Resistance: 500mΩ Min
Contact Resistance: 20mΩ Max
Screw Torque: 0.4Nm(3.5Lb.in)
Wire Range: 26-14AWG 2.5M㎡
Strip Length: 5-6mm
Term. Range: -40℃~+105℃
Max Solering +250℃.5S
Housing Material: PA66(UL94 V-O)
Contact: Steel, Tin Plating
Clamp: Brass/Steel, NI Plating
Wire Protector: Brass,Ni Plating
Screw: -





Company history:

In July,2004, Shenzhen Jinling Electronic CO., Ltd was established, the company focused on connector metal stamping mold R&D , manufacturing and plastic mold and assembly.

In June,2005 the company has passed the CQC certifications ISO9001:2008 and ISO14001:2004.



In 2007, the company registered the trademarks”JILN”and”NETECH”

In January,2008, the produ rct of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.

In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.



Our business concept:integrity,gratitude and responsibility.

Our business strategy:quality first,customer first,excellence,team work!

Our service philosophy:speed,precise,considerate,carefully,elaborately,diligently.



Service purpose provided quick, decisive, accurate thoughtful service beyond what you think.Carefully, meticulously, attentively, picky customers is our mentor, regards complaining customer as friend.

Our value: committed to providing competitive solutions and diversified products of high quality to customer.

Enterprise positioning: to create brand improve enterprise awareness, to be a pioneer and leader in connector industry.

Team culture working happy to achieve the goal of team, to realized the dream of individuals.
