|Place of Origin:||China|
|Minimum Order Quantity:||1000pcs|
|Packaging Details:||Tube packing/PE bag packing|
|Delivery Time:||7-10 days|
|Payment Terms:||T/T, L/C, Western Union|
|Insulator Material::||Polyester||Rated Current:||1.5 AMP|
|Withstand Voltage:||500V AC/DC||Insulation Temperature:||-40℃~+105℃|
pin header female,
right angle female header

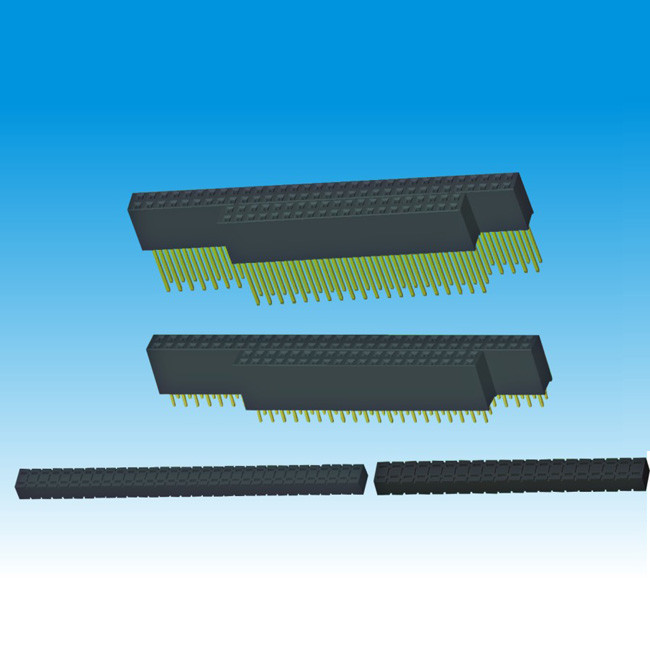

2.54 mm Pitch Height 11.0 Single Row Female Header Connector Straight Type Gold flash
female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.
Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
|Contact Material||Phosphor Brass|
|Contact Plating||Au or Sn over 50U"NI|
|Insulation Resistance||1000MΩ Min|
|Package :||Tube packing|
|Operation Temperature:||-40 ℃ to +105 ℃|
1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.
1. Do not worry, it will be best services.
2. Consult us immediately.
3. We will get back to you the first time.
4. It's my pleasure.
The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.
Complete Testing Equipment:
To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block)
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
Q: How about samples? is it free ?
A: 20 Piece free sample is available, If you would like to pay the freight fees.
Q: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.
Q: What about your leading&delivery time?
A: Leading time according to your quantity, and usually delivery time is 5~7 working days
Q: Do you have UL certificate? and others?
A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.
1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.
2. If goods is large:Sea or Air shipping method
