Micro Match Amp Header Connector 1.27mm Pitch Red Color Long Lifespan

Basic Information
Place of Origin: SHENZHEN
Brand Name: JiLN
Certification: UL/CUL/Rosh/SGS
Model Number: 4000-XXMSSNXNT01
Minimum Order Quantity: 500pcs
Price: Negotitation
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, , T/T, Western Union,
Supply Ability: 8000000Kpcs
Material: PPS/PBT Color: Red OrWhite
Soldering Type: DIP/SMT Clip Material: CeCu(Beryllium Copper)
Gender: Male Header Plating: Au Or Sn Over 50U"Ni
High Light:

amp header connector

,

male header connector

Products Description

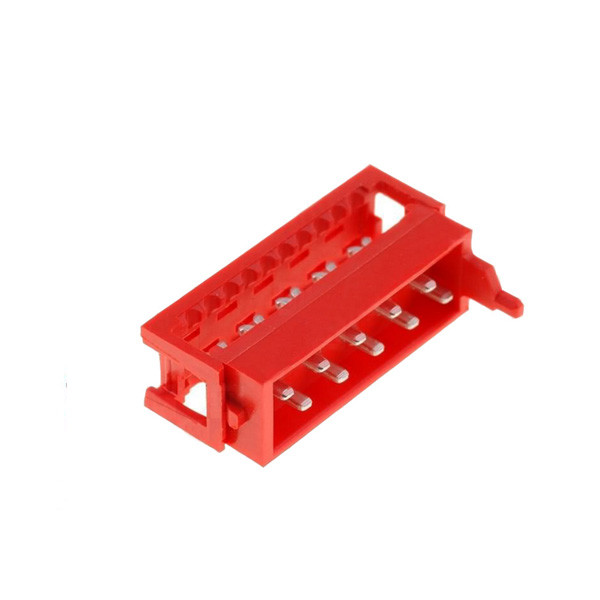

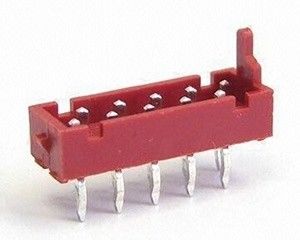

AMP Micro Match Plug Connector With 1.27mm Pitch Red Color.





Micro Match Amp Header Connector 1.27mm Pitch Red Color Long Lifespan 0 Micro Match Amp Header Connector 1.27mm Pitch Red Color Long Lifespan 1






Description



The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The female contacts have a contact spring system that prevents fretting corrosion. A positioning spring absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant.



These Micro-MaTch Female-on-Board PCB sockets feature a kinked leg design for secure retention to the PCB. Versions are available with a top or side entry and locking latches for a secure mating connection.



Micro-MaTch Female-on-Board PCB socket connectors for use in both vertical and right angle board to board and wire to board interconnections.







SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Phosphor Bronze/brass
Insulator Material
PPS/PBT
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
3.0A
Insulation Resistance
1000MΩ Min
Package :
Tube packing/PE bag packing
soldering type
DIP/SMT
Operation Temperature:
-40 ℃ to +105



Primary products:



Pin Header Connector

Female Header Connector

Box Header Connector

Ejector Header

Board To Board Connector

DIN 41612 Connector

Flat Ribbon Cable

FFC Cable

Terminal Block Connector

SCSI Connector

Machine Pin Headers

Micro Match Connector



Engineering drawing:(Support Download)



4000XXMSSNXNX01.pdf

4000XXMISNXNT01.pdf

4000-XXMMSNXNX01 SMT.pdf    Matching Part
