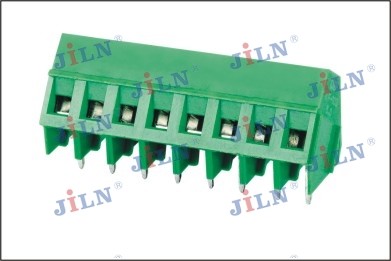

PA66 UL94V-0 Pcb Screw Terminal Blocks M2.5 5.00mm Pitch

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: JL103
Minimum Order Quantity: 1000PCS
Price: 0.01-1USD
Packaging Details: Tube packing/PE bag packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30000000PCS per Month
Insulator Material:: PA66 Rated Current: 300V,8A
Withstand Voltage: 1500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

PA66 Pcb Screw Terminal Blocks

,

UL94V-0 Pcb Screw Terminal Blocks

,

5.00mm Pitch Pcb Terminal Connector

M2.5 5.00mm Pitch Pcb Universal Screw Terminal Blocks Connector PA66 UL94V-0

Specifications:


Rated Currency: 300V,10A
Dieletric Strength: AC2000V/1 Minute
Insularion Resistance: 500mΩ Min
Contact Resistance: 20mΩ Max
Screw Torque: 0.2Nm(1.7Lb.in)
Wire Range: -
Strip Length: -
Term. Range: -40℃~+105℃
Max Solering +250℃.5S
Housing Material: PA66(UL94 V-O)
Contact: Steel, Tin Plating
Clamp: Brass/Steel, NI Plating
Wire Protector: Brass,Ni Plating
Screw: -







Company history:





In 2007, the company registered the trademarks”JILN”and”NETECH”

In January,2008, the product of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.

In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.





Our business concept:integrity,gratitude and responsibility.

Our business strategy:quality first,customer first,excellence,team work!

Our service philosophy:speed,precise,considerate,carefully,elaborately,diligently.



We Owned :

1. 20,000 square meters factory, > 600 workers

2. 30 sets precision mold processing equipment

3. 34 sets precision plastic injection machine

4. 24 sets high -speed precision punch

5. 240 sets hardware terminal molds

6. 35 sets laboratory tester

7. > 200 sets machines automatic assemble machine
