PCB 2mm Right Angle Pin Header Round Male High Strength Stable Performance

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL ROHS
Model Number: 3612
Minimum Order Quantity: 100pcs
Price: 0.01usd/pcs
Packaging Details: PE Bag
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000000pcs per day
Application: PCB,LED,etc Type: Machine Pin
Product Name: 2.0mm Pin Header Round Pin Insulator Body: PPS (UL94V-0)
Current Rating: 2.0Amps/contact Max. Color: Black
Operating Voltage: 60V AC/DC Insulation Resistance: 1000MΩ
Pitch: 2.0mm Plating: Gold Plated
High Light:

round female pin header

,

male pin header

2.0mm Pin Header Round Pin Male Type Machine Pin PCB Connectors

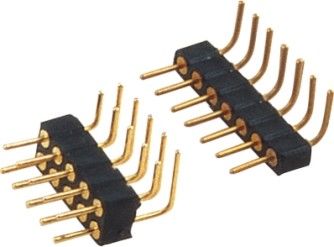

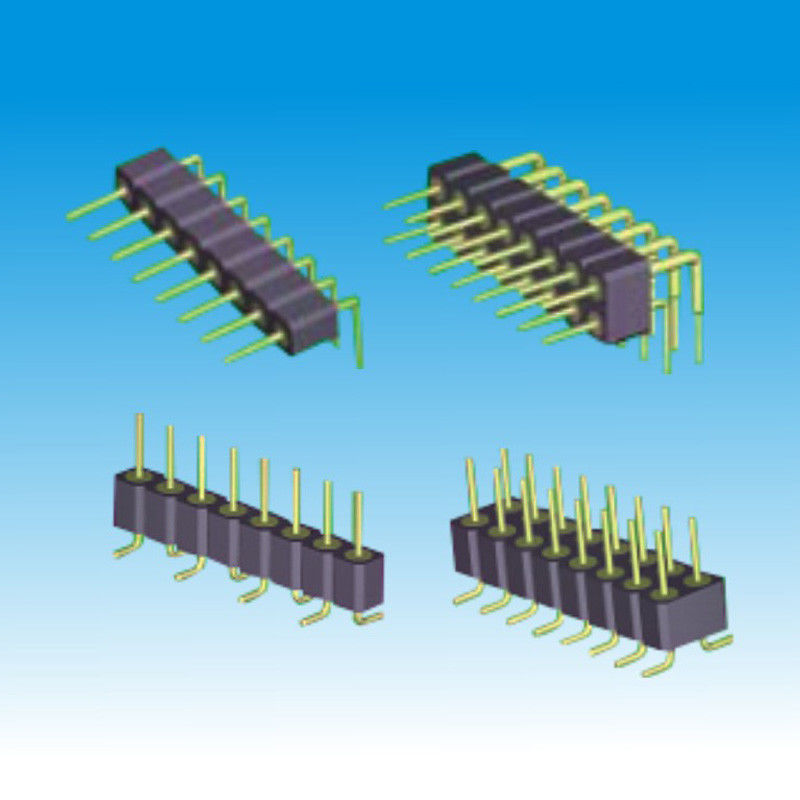

      PCB 2mm Right Angle Pin Header Round Male High Strength Stable Performance 0   PCB 2mm Right Angle Pin Header Round Male High Strength Stable Performance 1



Description



Machined pin connector offer a variety of options to accommodate everything from space-saving,fine-pitch requirements , more robust applications in which products are subjected to harsh environments including significant shock and vibration. By mating different combinations of headers and sockets, a wide range of board-to-board spacing can be achieved.



Machined pin are the most powerful connector products of all connector product types, widely used in elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry, power systems, communication networks, financial manufacturing etc.





SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Brass
Insulator Material
PPS polyester (UL94V-0)
Contact plating
Gold plating
Current Rating
3A
Contact Resistance
20MΩ
Packing :
PE Bag packing






Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.

Services:


1. Do not worry, it will be best services.
2. Consult us immediately.
3. We will get back to you the first time.
4. It's my pleasure.



Engineering drawing:



Right Angle Type(Single row)



PCB 2mm Right Angle Pin Header Round Male High Strength Stable Performance 2



Right Angle Type(Dual row)



PCB 2mm Right Angle Pin Header Round Male High Strength Stable Performance 3
