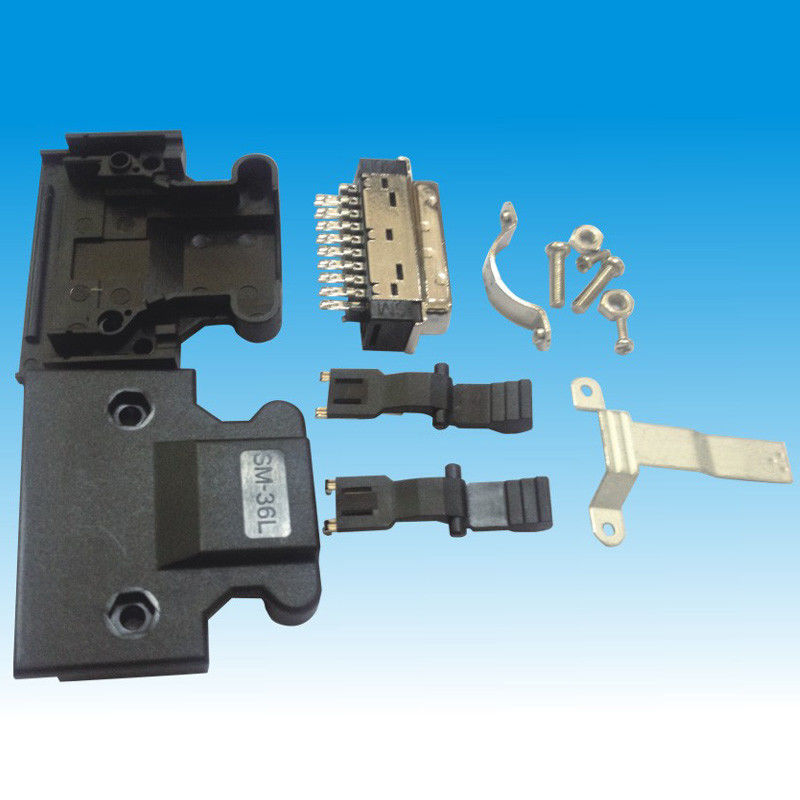

1.0AMP SCSI MDR Male Straight Connector 20P With Snaps

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh
Model Number: 6331MXXXSSXXMNA03
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Contact Resistance:: 35mΩ Max Insulation Resistance:: 20mΩ Min
Withstanding Voltage:: AC500V Insulator Material:: PBT Black
Contact Material:: Phosphor Bronze Contact:: Sn Over Ni
Operation Temp:: -40° To +105° Rated Current:: 1.0AMP
High Light:

SCSI MDR Male Straight Connector

,

1.0AMP Male Straight Connector

,

20P MDR Solder Connector

SCSI MDR Solder Type Connector with Snaps for Cable Male Straight Type 20



Specifications:

Contact Resistance: 35mΩ Max
Insulation Resistance: 20mΩ Min
Withstanding Voltage: AC/DC 500V
Insulator Material: PBT Black
Contact Material: Phosphor Bronze
Contact:

Sn over Ni

Screw: Steel Nickel Plated over Copper
Shround Material: Spcc
Solder Area Plated: Tin Plated
Operation Temp: -40° to +105°





Company Information:



Our business concept:integrity,gratitude and responsibility.

Our business strategy:quality first,customer first,excellence,team work!

Our service philosophy:speed,precise,considerate,carefully,elaborately,diligently.





We Owned :

1. 20,000 square meters factory, > 600 workers

2. 30 sets precision mold processing equipment

3. 34 sets precision plastic injection machine

4. 24 sets high -speed precision punch

5. 240 sets hardware terminal molds

6. 35 sets laboratory tester

7. > 200 sets machines automatic assemble machine







1.0AMP SCSI MDR Male Straight Connector 20P With Snaps 0

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, Our company has more than 30sets of different kinds of metal stamping machines which exert force between 25-110 tons. We employ progressive stamping , that allows for multiple stamping operations to be performed in a singlet tool and die at one single machine. We can stamp various materials including, brass, phosphor bronze, beryllium copper, nickel coated and stainless and various of type of steels.



1.0AMP SCSI MDR Male Straight Connector 20P With Snaps 11.0AMP SCSI MDR Male Straight Connector 20P With Snaps 2

Complete Testing Equipment:

Our company invert in production plant and equipment such as Charmilles Sodick low speed wire cutting machine, Charmiles precision CNC electric pulse machine etc and utilize CAD/CAE and application software, such as auto CAD, mold flow to equip ourselves with the relevant and technology to meet up with customer’s demand.

1.0AMP SCSI MDR Male Straight Connector 20P With Snaps 3

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements

1.0AMP SCSI MDR Male Straight Connector 20P With Snaps 4



FAQ:



1. How do JILN to ensure the quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Widely used in industrial facilities,electrical equipment and electronic appliance 1.3 State of art testing equipment and tools. E.g. X-R Plating Thickness Tester, plastic moisture analysis tester, ROHS Tester

1.4(Automated Optical Inspector) and ICT (in-circuit testing).
1.5.Dedicated quality assurance team with failure case analysis process
1.6.Continuous staff training and education



1.0AMP SCSI MDR Male Straight Connector 20P With Snaps 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
