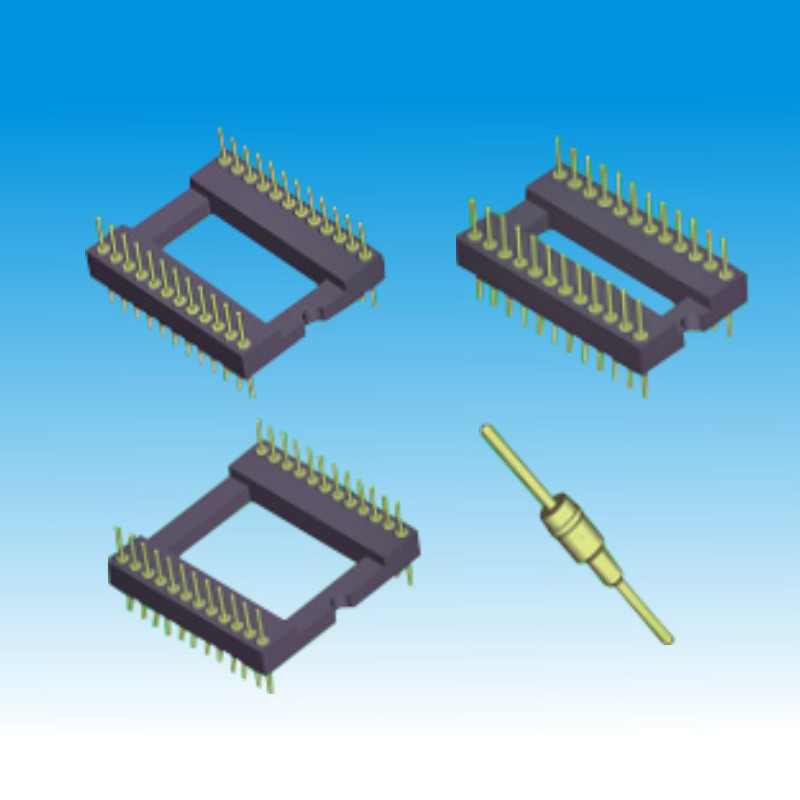

1.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 722028XXXSXX074X1
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Body Material:: Polyester(ul94v-O), Standard: PPS Rated Current: 2.0A
Contact Resistance: 20mΩ Max Contact Plating: Au Or Sn Over 50 U'' Ni
Body Height: 3.0 Package: Tube
Mounting Type: Straight Surface Treating: Gold Plating
High Light:

7.4mm Length Machine Pin Headers

,

1.778mm Pitch Machine Pin Headers

,

2.0A IC SOCKET Female Headers

1.778 pitch DIP Round Pin IC Socket Female Type 7.4 mm Length connector


Specifications:


Operation Temperature -40°C to + 105° C
Insulator Material PPS
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage AC 1000V
Current Rating 3A
Insulation Resistance 1000MΩ Min
Package : Tube packing
Mounting type: Straight
Surface Treatment: Gold Plating
Outer Sleeve: Brass
Clip(contact finger) Beryllium Coper



Company Information:



Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.To provide high quality and best performance-to-price ratio products from customers,we have realized integrated production from the plastic and hardware terminals,design and development of mold,precision plastic injection molding and high speed precision hardware punching,and automatic assembly of the products,to implementation of one-stop production and service,we based on the domestic and aiming at the world,Striving to provided customers with high-quality and best-price products.

1.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A 0

Production Capability:



Products are widely used in: industrial and power control, electronic communications, security, LED photoelectric, liquid crystal display, inverter, servo system, medical equipment, automotive electronics, computer motherboards, printers,electronic toys, Our company has more than 30sets of different kinds of metal stamping machines which exert force between 25-110 tons. We employ progressive stamping , that allows for multiple stamping operations to be performed in a singlet tool and die at one single machine. We can stamp various materials including, brass, phosphor bronze, beryllium copper, nickel coated and stainless and various of type of steels.

1.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A 11.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.



Certifications:

Companies adhere to the quality as the center of the business philosophy, but also attaches great importance to environmental protection. We passed the ISO9001 quality management system and ISO14001 environmental management system, Authentication, our laboratory has a large number of advance detection instruments and equipment, access to UL, VDE,CQC,CBSGS,ROHS and other certificates.

1.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A 3



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).



Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.



1.778mm Pitch DIP 7.4mm Length Machine Pin Headers 2.0A 4



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
