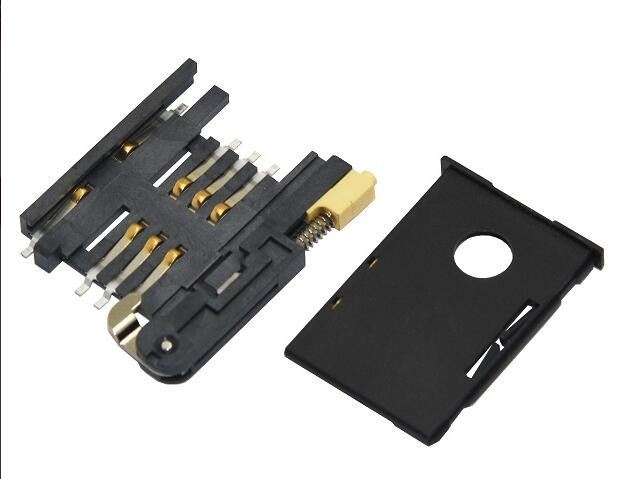

2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series

Basic Information
Place of Origin: CHINA
Brand Name: JiLN
Certification: UL/Rohs
Model Number: 7420-08M1XXNBR01
Minimum Order Quantity: 1000pcs
Price: USD0.003-0.167
Packaging Details: tube packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,
Supply Ability: 1000000pcs/day
Material: LCP/PA9T/PA6T Plating Way: Gold Plated/tin Plated/selective Gold Flash
Packing Way: Reel Packing/tube Packing/PE Bag Packing/tray Packing Type: Adapter
Application: PCB,Ethernet,All Electric Area,Automotive Gender: Male
Pitch: 2.54 Color: Black,white/black Plastic,Black/OEM
High Light:

2.54mm Pitch Memory Card Socket

,

LCP PA9 Memory Card Socket

,

6 Pin Sim Card Connector

Molex 2.54mm Pitch Memory Card Socket 6 Pin Sim Card Connector 91228 Series Yellow Button

SIM (Subscriber Identity Module) is a small smart card for storing user identity and personal information, ensuring user security and authentication, which is often used in mobile network terminals.
In order to ensure that power and electrical signals are "uninterrupted", "unchanged" and "non-attenuated", contact reliability technology is particularly important.
With excellent technical capability, the SIM Card Connectors provided by JINLING have excellent reliability and durability, and are available in a wide range of types and sizes, including Nano SIM (4FF SIM) Card /Micro SIM(3FF SIM) Card /SIM(2FF SIM) Card and Combined SIM Card Connectors.
Our SIM Card Connectors can work at a temperature between -40℃ and 85℃.



other products:



2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 0








SPECIFICATIONS:



MATERIAL

UL No#

Contact Material
Phosphor Bronze/brass
Insulator Material
PBT/PA6T/PA9T/LCP
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
3.0A
Insulation Resistance
1000MΩ Min
T&R packing :
tube packing/reel packing
soldering type
right angle/DIP
Operation Temperature:
-40 ℃ to +105



Engineering drawing:




7420-08M1XXNBR01 A card.pdf



2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 1
Related Products
2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 2

dual row smt pin header

2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 3

Single row right angle pin header

2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 4

Four row& three row pin header

Packing & Delivery

1. If goods is not large: Fedex, DHL, EMS, UPS, TNT, ect express shipping method;
2. If goods is large: Sea or Air shipping method.

2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 5
FAQ

Q1: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.
2. Main customer:

2.54mm Pitch Memory Card Socket LCP PA9T 6 Pin Sim Card Connector 91228 Series 6



3. Our MOQ is: 100 PCS(1 PCS for sample).
4. Good quality, competitive price with best service.
5. Available for ODM/OEM order.



Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.


Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.



Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.


Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.



Dear friend, if you are interested in our products, pls send me your product information, We will surely quote for you in 24 hours, thank you!
