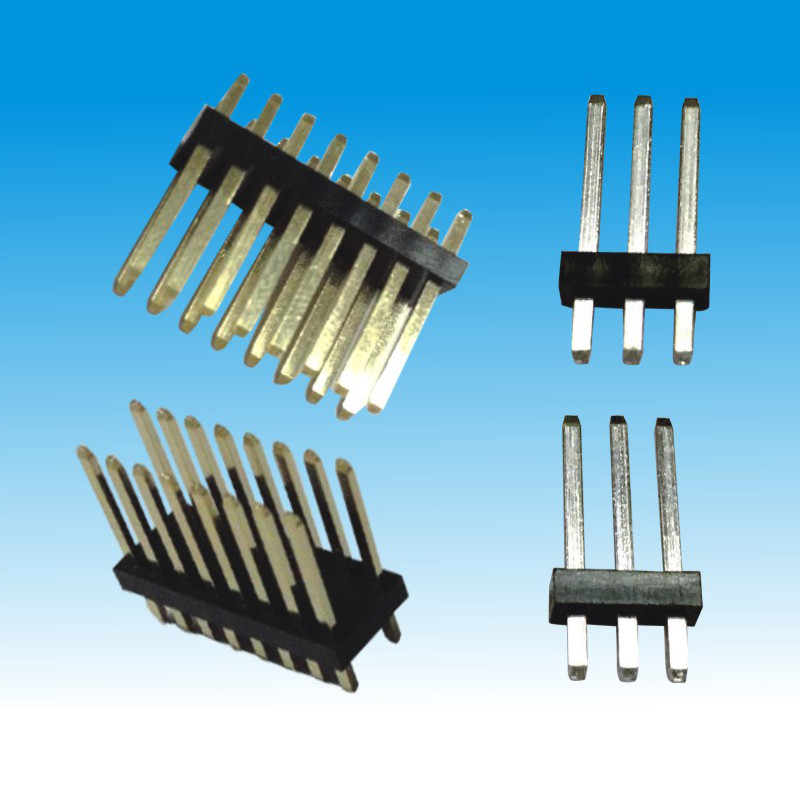

2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh
Model Number: 1820-1208DNXXS155T01
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester LCP/PA9T Rated Current: 5A
Withstand Voltage: 1000V AC/DC Insulation Temperature: -40℃~+105℃
Cover: PA9T T&R Packing Qty: 1000pcs
Contact: Brass Surface Treatment:: AU Over Ni
Contact Resistance: 20MΩ Max
High Light:

Polyester LCP Pin Header Connector

,

2.5 x5.2 Pitch Pin Header Connector

,

5A Dual Row Header Connector

Auotomotive Connectors Pin Header 2.5 x5.2 Pitch 2.0 Height Dual Row



Specifications:

Contact Material Phosphor Brass Gold plated
Insulator Material PA9T/LCP
Contact Plating Gold plated
Withstanding Voltage

1000V AC/DC

Insulation Resistance 1000MΩ Min
Package : Reel packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃
Pitch: 2.5 x5.2





Company Information:



JINLING ELECTRONICS was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.

The company has passed the ISO9001:2015quality management system certification and ISO14001:2015 environmental management system certification,IATF 16949 system certification and passed CE certification and TUV certification. Connectors and wires of our company has passed United States UL safety certification.(UL NO.: E362810) and (UL NO.: E472355),terminal blocks(UL NO.:E484895).Quality service and integrity are always the enterprise concept we constantly pursuing to improve. And the concept is always in our in our R&D, designing and manufacturing of products. With the concept, we will timely deliver good quality products to you.

2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 0

Production Capability:



Our company has more than 30sets of different kinds of metal stamping machines which exert force between 25-110 tons. We employ progressive stamping , that allows for multiple stamping operations to be performed in a singlet tool and die at one single machine. We can stamp various materials including, brass, phosphor bronze, beryllium copper, nickel coated and stainless and various of type of steels.



2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 12.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 3

Certifications:

Companies adhere to the quality as the center of the business philosophy, but also attaches great importance to environmental protection. The company passed the ISO9001 quality management system and ISO14001 environmental management system, Authentication, our laboratory has a large number of advance detection instruments and equipment, access to UL, VDE,CQC,CBSGS,ROHS and other certificates.

2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 4



FAQ:



Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.



2.5 x5.2 Pitch Dual Row Polyester LCP Pin Header Connector 5A 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
