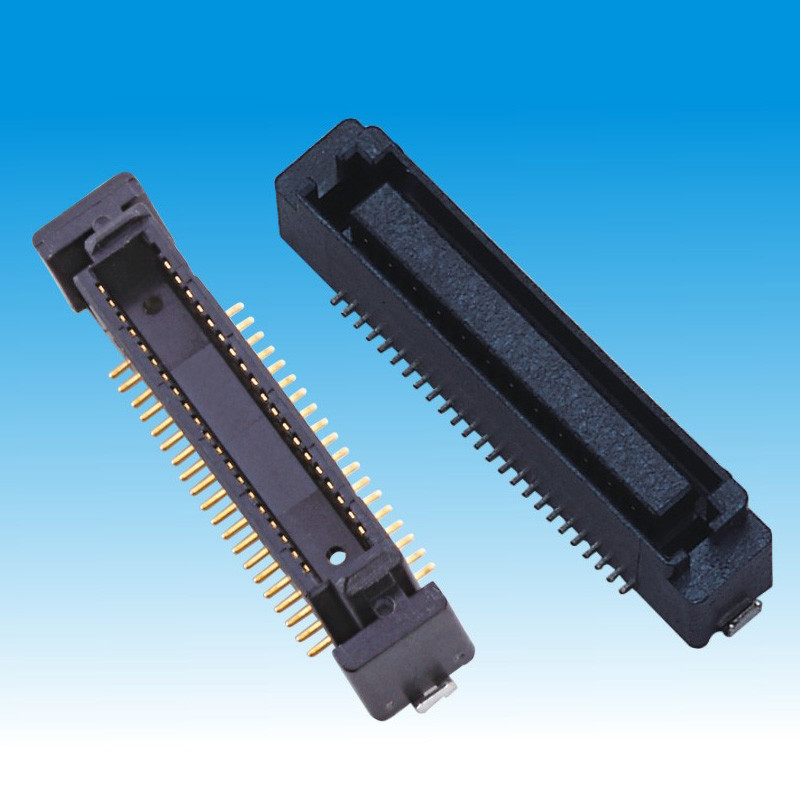

50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh
Model Number: 3710M050066XXFR01
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester LCP/PA9T Rated Current: 1 AMP
Withstand Voltage: 200V AC/DC Insulation Temperature: -40℃~+105℃
Cover: PA9T T&R Packing Qty: 1000pcs
Contact: Phosphor Bronze Surface Treatment:: AU Over Ni
High Light:

0.8mm Board To Board Connector

,

H6.6 Board To Board Connector

,

PA9T SMT Male Connector

0.8mm Board To Board Connector 50Pin SMT Male H6.6 Black Color Housing



Specifications:

Contact Material Phosphor Bronze Gold plated
Insulator Material PA9T/LCP
Contact Plating Gold plated
Withstanding Voltage 250V AC/minute
Electical Rating AC/DC 50V 0.5A
Insulation Resistance 500MΩ Min
Package : Reel packing
soldering type SMT
Operation Temperature: -40 ℃ to +105 ℃





Company Information:



JINLING ELECTRONICS was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.

The company has passed the ISO9001:2015quality management system certification and ISO14001:2015 environmental management system certification,IATF 16949 system certification and passed CE certification and TUV certification. Connectors and wires of our company has passed United States UL safety certification.(UL NO.: E362810) and (UL NO.: E472355),terminal blocks(UL NO.:E484895).Quality service and integrity are always the enterprise concept we constantly pursuing to improve. And the concept is always in our in our R&D, designing and manufacturing of products. With the concept, we will timely deliver good quality products to you.

50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 0

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments ,company handles import-export rights. and up to 40% products are exported to Euro-American countries.



50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 150 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 3

Certifications:

Companies adhere to the quality as the center of the business philosophy, but also attaches great importance to environmental protection. The company passed the ISO9001 quality management system and ISO14001 environmental management system, Authentication, our laboratory has a large number of advance detection instruments and equipment, access to UL, VDE,CQC,CBSGS,ROHS and other certificates.

50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 4



FAQ:



Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days



50 Pin SMT Male H6.6 0.8mm Board To Board Connector PA9T 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
