Black Durable Card Edge Connector 2.54mm Pitch IDC Type Wear Resistant

Basic Information
Place of Origin: SHENZHEN
Brand Name: JiLN
Certification: UL/CUL/Rosh/SGS
Model Number: 5481-XXPS0BN01
Minimum Order Quantity: 500pcs
Price: Negotitation
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, , T/T, Western Union,
Supply Ability: 8000000Kpcs
Material: PPS/PBT Color: Red Or White Or Black
Soldering Type: DIP/SMT/RIght Angle Clip Material: CeCu(Beryllium Copper)
Gender: Female Header Plating: Au Or Sn Over 50U"Ni
High Light:

pcb card edge connector

,

card edge connector right angle

Products Description



2.54mm Pitch Card Edge Connector IDC type Selective Gold Plated.

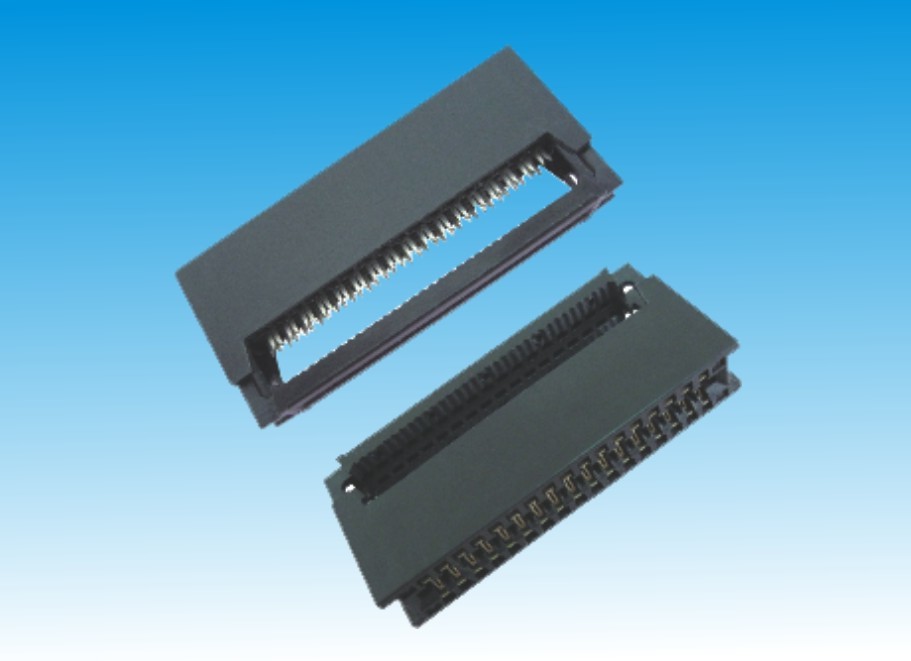

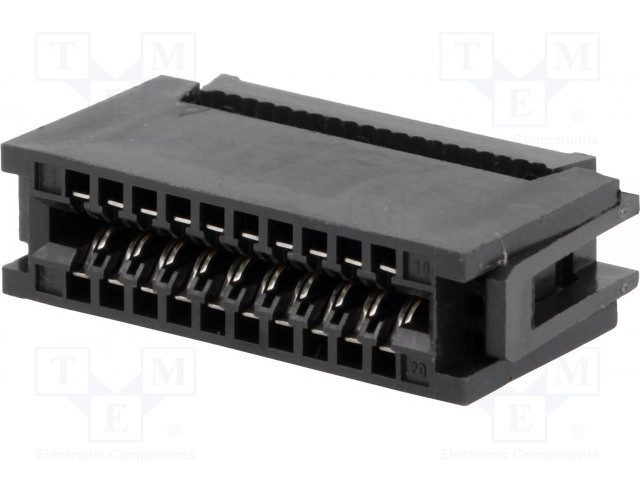

Black Durable Card Edge Connector 2.54mm Pitch IDC Type Wear Resistant 0 Black Durable Card Edge Connector 2.54mm Pitch IDC Type Wear Resistant 1




Description



An edge connector is the portion of a printed circuit board (PCB) consisting of traces leading to the edge of the board that are intended to plug into a matching socket.

The edge connector is a money-saving device because it only requires a single discrete female connector (the male connector is formed out of the edge of the PCB), and they also tend to be fairly robust and durable.

Card Edge are commonly used in computers for expansion slots for peripheral cards, such as PCI, PCI Express, and AGP cards



Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.





SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Phosphor Bronze/brass
Insulator Material
PPS/PBT
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
3.0A
Insulation Resistance
1000MΩ Min
Package :
Tube packing/PE bag packing
soldering type
DIP/SMT
Operation Temperature:
-40 ℃ to +105



Engineering drawing:(Support Download)



5481-XXPS0BN01.pdf
