Board To Board Female Header Connector 0.8mm SMT LCP Black White Color

Basic Information
Place of Origin: CHINA
Brand Name: JiLN
Certification: UL/Rosh/SGS
Model Number: 3711-XXXXX
Minimum Order Quantity: 500-1000pcs
Price: Negotiation
Packaging Details: Reel packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800000Kpcs
Material: LCP/PS9T Position: 20P To 160P
Samples: 10-20pcs For Free Picth: 0.8mm/0.5mm/0.635mm/1.00mm
Color: Black/White Package: Reel Packing
High Light:

board to board pin header

,

right angle board to board connector

roducts Description



0.8mm Board To Board Connector Female Header SMT Type LCP Material.





Board-to-board connectors are the most powerful connector products of all connector product types, widely used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry etc.



At present, the main spacing of the board-to-board connectors is 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00m, etc.

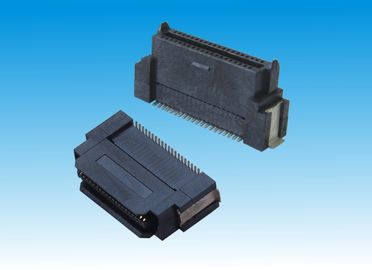

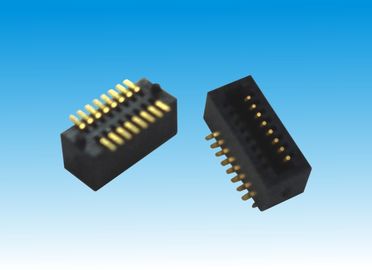

Board To Board Female Header Connector 0.8mm SMT LCP Black White Color 0 Board To Board Female Header Connector 0.8mm SMT LCP Black White Color 1








SPECIFICATIONS:

MATERIAL

UL No#

Contact Material
Phosphor Bronze/brass
Insulator Material
PA6T/PA9T/LCP
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
0.5A
Insulation Resistance
1000MΩ Min
T&R packing :
Reel packing
soldering type
SMT
Operation Temperature:
-40 ℃ to +105



Features:



High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant



Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.



We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



Engineering drawing:



3711FXXXXXXXXXX01.pdf  Engineering drawing(female header)

3711MXXXXXXXXXX01.pdf Engineering drawing( male header)

Board To Board Female Header Connector 0.8mm SMT LCP Black White Color 2

Board To Board Female Header Connector 0.8mm SMT LCP Black White Color 3
