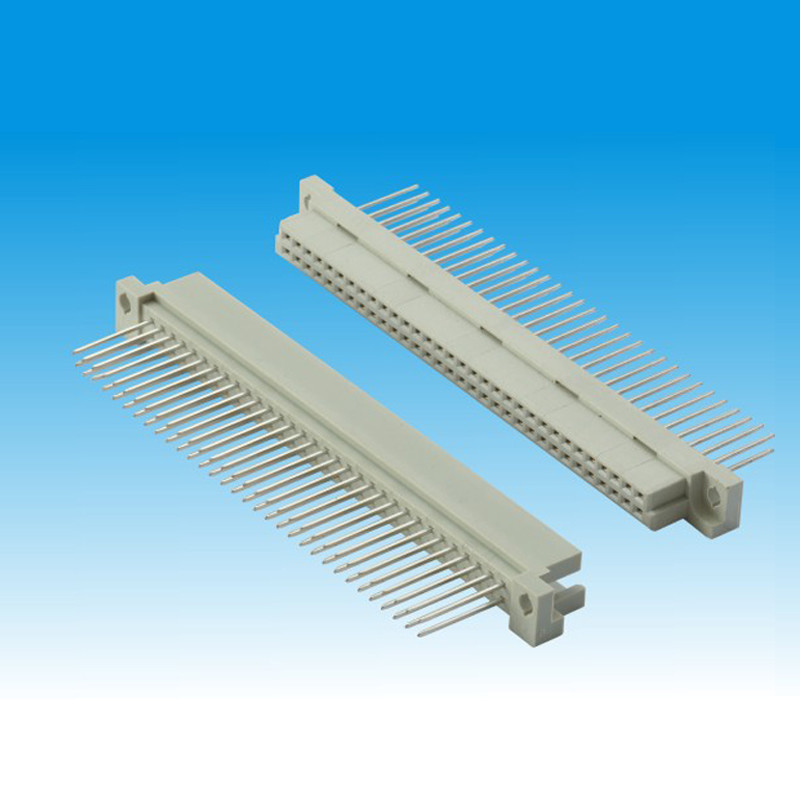

DIN41612 PC4.0 Straight Female Header Connector 2.54mm For PCB

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh
Model Number: 35112XXBFSXXBNA1
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester LCP/PBT Rated Current: 1AMP
Withstand Voltage: 500V AC/Minute Insulation Temperature: -40℃~+105℃
T&R Packing Qty: 1000pcs Contact: Bronze
Surface Treatment:: AU Over Ni
High Light:

PC4.0 Straight Female Header Connector

,

DIN41612 Female Header Connector

,

2.54mm Dual Row Female Connector

2.54mm DIN41612 Dual Row PC4.0 Straight Female Type Connector for PCB



Specifications:

Contact Rating 3 AMP
Insulator Material PBT
Contact Plating Au or Sn over 50u" Ni
Withstanding Voltage 1000V
Contact Resistance 20Ω Max
Insulation Resistance 1000MΩ Min
Package : Reel packing
Operation Temperature: -40 ℃ to +105 ℃





Company Information:



1.Company history:

In July,2004, Shenzhen Jinling Electronic CO., Ltd was established, the company focused on connector metal stamping mold R&D , manufacturing and plastic mold and assembly.

In June,2005 the company has passed the CQC certifications ISO9001:2008 and ISO14001:2004.



In 2007, the company registered the trademarks”JILN”and”NETECH”

In January,2008, the product of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.

In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.

In November,2008, The company has awarded three products patents and rated as excellent enterprise in Shenzhen.

In September,2010, The company was awarded”Guangdong’s Excellent Proprietary Brand” by Guangdong Entrepreneurs Association.





DIN41612 PC4.0 Straight Female Header Connector 2.54mm For PCB 0

In 2011, the company introduced ERP management system.

In September, 2012 the main products including pin, female header connector, Terminal Blocks, Box Header Connector Ejector Header and IDC Machine Pin DIN41612 Flat Cable series.

In August, 2014 had passed 3C Certification.

In December,2014, our company won seven product patent, passed the HI-TECH enterprise of Shenzhen and got the certificate of honor at the same time.

In June 2015, JILN is the vice chairman of Shenzhen connector association and attained the “good faith enterprise”

In July of 2016 UL authorized laboratory was established.

DIN41612 PC4.0 Straight Female Header Connector 2.54mm For PCB 1DIN41612 PC4.0 Straight Female Header Connector 2.54mm For PCB 2
