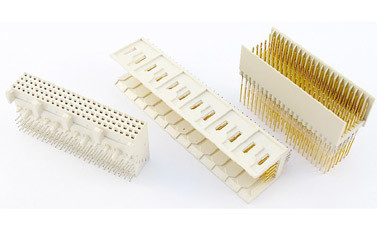

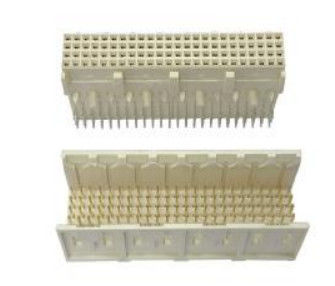

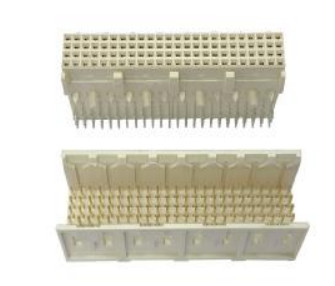

DIP 5x12P 2.00mm Pitch Pcb Pin Connector With Press Terminal

Basic Information
Place of Origin: CHINA
Brand Name: JiLN
Certification: UL/Rosh/SGS
Model Number: 3510560AMSXXPNX1
Minimum Order Quantity: 500-1000pcs
Price: Negotiation
Packaging Details: Tray packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800000Kpcs
Material: LCP/PS9T Position: 30P To 120P
Samples: 10-20pcs For Free Picth: 2.00mm
Color: Black/White Package: Tray Packing
High Light:

2.00mm Pitch Pcb Pin Connector

,

5x12P Pcb Pin Connector

,

Press Terminal Din Female Connector

Products Description



FUTURE BUS Connector Male Header DIP With Press Terminal 5x12P Gold Plated





This product family is a series of Board-to-Board connectors from Jinling Electroincs with a mission to meet all the needs of the industrial market with maximum functionality.



Description
Future Bus product family offers the widest range of backplane connector solutions which includes right angle and vertical for both header and receptacle series. The connectors are designed in accordance with IEC 61076-4-104 and Telcordia GR-1217- CORE.

Future Bus headers and receptacles offer high contact density of 250 contacts per 100mm connector length and a contact pitch of 2mm. They are available in 4 and 5 row versions.

Future Bus vertical receptacles can be used with vertical headers for mezzanine application.

Future Bus backplane connectors meet Future bus+ standards to support applications in data, industrial and instrumentation, medical and telecom markets.





MATERIAL

UL No#

Contact Material
Phosphor Bronze/brass
Insulator Material
LCP
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
1.5A
Insulation Resistance
1000MΩ Min
T&R packing :
Tray packing
soldering type
DIP/Right Angle
Operation Temperature:
-40 ℃ to +105












Features:



High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant



Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.



We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



Engineering drawing:



3510560AMSXXPNX1.pdfEngineering drawing(Male header DIP)

DIP 5x12P 2.00mm Pitch Pcb Pin Connector With Press Terminal 0







FAQ

Q1: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.
2. Main customer:

DIP 5x12P 2.00mm Pitch Pcb Pin Connector With Press Terminal 1



3. Our MOQ is: 100 PCS(1 PCS for sample).
4. Good quality, competitive price with best service.
5. Available for ODM/OEM order.



Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.


Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.



Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.


Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.



Dear friend, if you are interested in our products, pls send me your product information, We will surely quote for you in 24 hours, thank you!
