Place of Origin: | China |
---|---|
Brand Name: | JILN |
Certification: | UL/CUL/Rosh/SGS |
Model Number: | 225002XXXNXXWUX01 W7.62 |
Minimum Order Quantity: | 500pcs |
Price: | negotiable |
Packaging Details: | Tube packing/PE bag packing |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 8000000Kpcs |
Insulator Material:: | Polyester | Rated Current: | 3 AMP |
---|---|---|---|
Withstand Voltage: | 500V AC/DC | Insulation Temperature: | -40℃~+105℃ |
High Light: | pin header female,right angle female header |

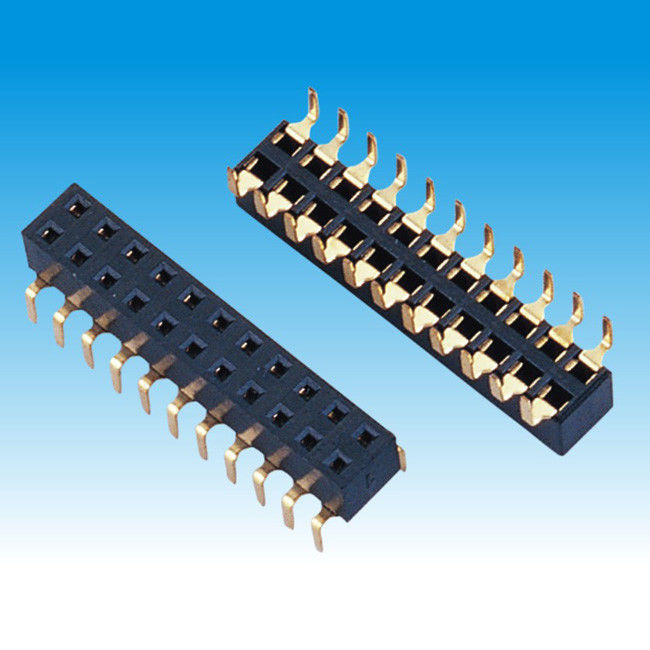

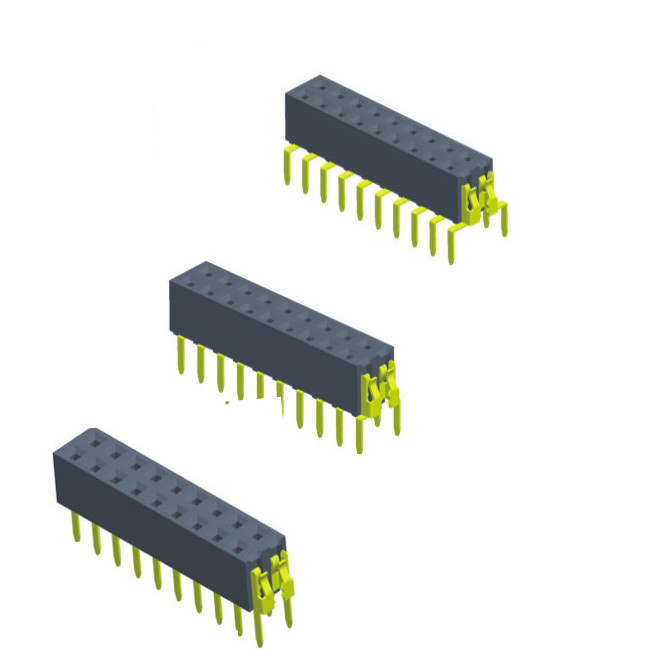

2.54 mm Dual Row Female Header Connector Straddle Pin Bottom Entry
To provide high quality and best performance-to-price ratio products from customers,we have realized integrated production from the plastic and hardware terminals,design and development of mold,precision plastic ejection molding and high speed precision hardware punching,and automatic assembly of the products,to implementation of one-stop production and service.
Female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches male header . straight female headers are available in a variety of commonly used pin counts
female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.
Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Contact Material | Phosphor Bronze |
Insulator Material | PA9T/LCP |
Contact Plating | Au or Sn over 50U"NI |
Withstanding Voltage | 1000V |
Current Rating | 3 A |
Insulation Resistance | 1000MΩ Min |
Package : | Tube packing |
soldering type | Bottom Entry |
Operation Temperature: | -40 ℃ to +105 ℃ |
Primary products:
Pin Header Connector
Female Header Connector
Box Header Connector
Ejector Header
Board To Board Connector
DIN 41612 Connector
Flat Ribbon Cable
FFC Cable
Terminal Block Connector
SCSI Connector
Machine Pin Headers
Mirco Match Connect
IDC Socket Connector
SIM Card Socket
Card Edge Connector
Wafer Connector
SATA Connector
Power Connector
Wiring Harness
Features:
High Quality Guaranteed
First Class Service
Best Prices
Stable performance
sturdy and durable
Long lifespan
wear resistant
Company Information:
Shenzhen Jinling Electronics was established 2001 and specialized in R&D and manufacturing of precision connectors,industrial terminal blocks and cable assemblies.
Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.
Production Capability:
The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.
Complete Testing Equipment:
To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.
Certifications:
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements
FAQ:
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
Q: How about samples? is it free ?
A: 20 Piece free sample is available, If you would like to pay the freight fees.
Q: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.
Q: What about your leading&delivery time?
A: Leading time according to your quantity, and usually delivery time is 5~7 working days
Q: Do you have UL certificate? and others?
A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.
·Shipping
1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.
2. If goods is large:Sea or Air shipping method
