Durable IDC Socket Connector , Connector 2mm Pitch Connector 500V AC/DC

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 5420XXPG0XB01
Minimum Order Quantity: 1000pcs
Price: negotiable
Packaging Details: Tray packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1.5 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

insulation displacement connector

,

idc type connector

2.00mm Pitch DIP Plug Connector Gold flash Tray packing


Product description:


Description



An insulation-displacement contact (IDC), also known as insulation-piercing contact (IPC), is an electrical connector designed to be connected to the conductor(s) of an insulated cable by a connection process which forces a selectively sharpened blade or blades through the insulation, by passing the need to strip the conductors of insulation before connecting.



When properly made, the connector blade cold-welds to the conductor, making a theoretically reliable gas-tight connection.

Normally wire-to-board connectors like IDC socket was assembly flat cable and matched with box header or EJector header

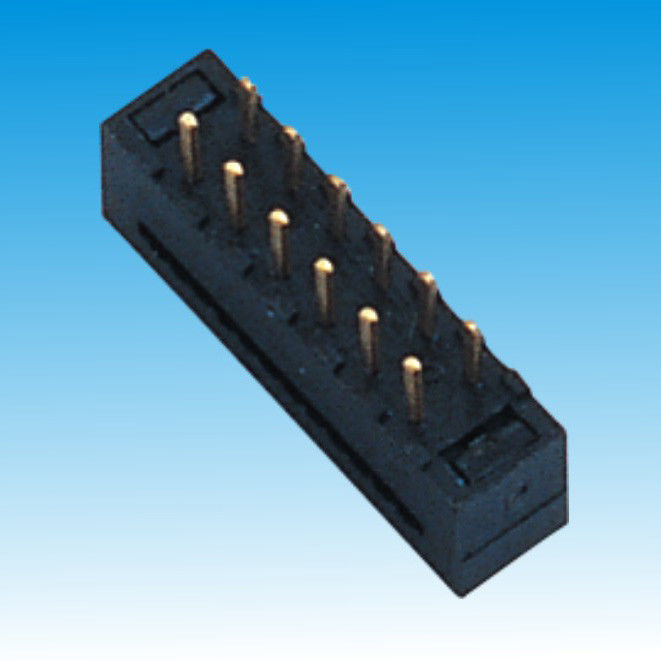

Durable IDC Socket Connector , Connector 2mm Pitch Connector 500V AC/DC 0



Specifications:

Contact Material Phosphor Brass
Insulator Material PBT/PA6T/PA9T
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1.5A
Insulation Resistance 1000MΩ Min
Package : Tray packing
soldering type Socket
Operation Temperature: -40 ℃ to +105 ℃

5420XXXXXB01.pdf



Features:



High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant



We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.





Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors,was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.



Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

Durable IDC Socket Connector , Connector 2mm Pitch Connector 500V AC/DC 1

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.



Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements





FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days. If you are very urgent, we can negotiate.

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
