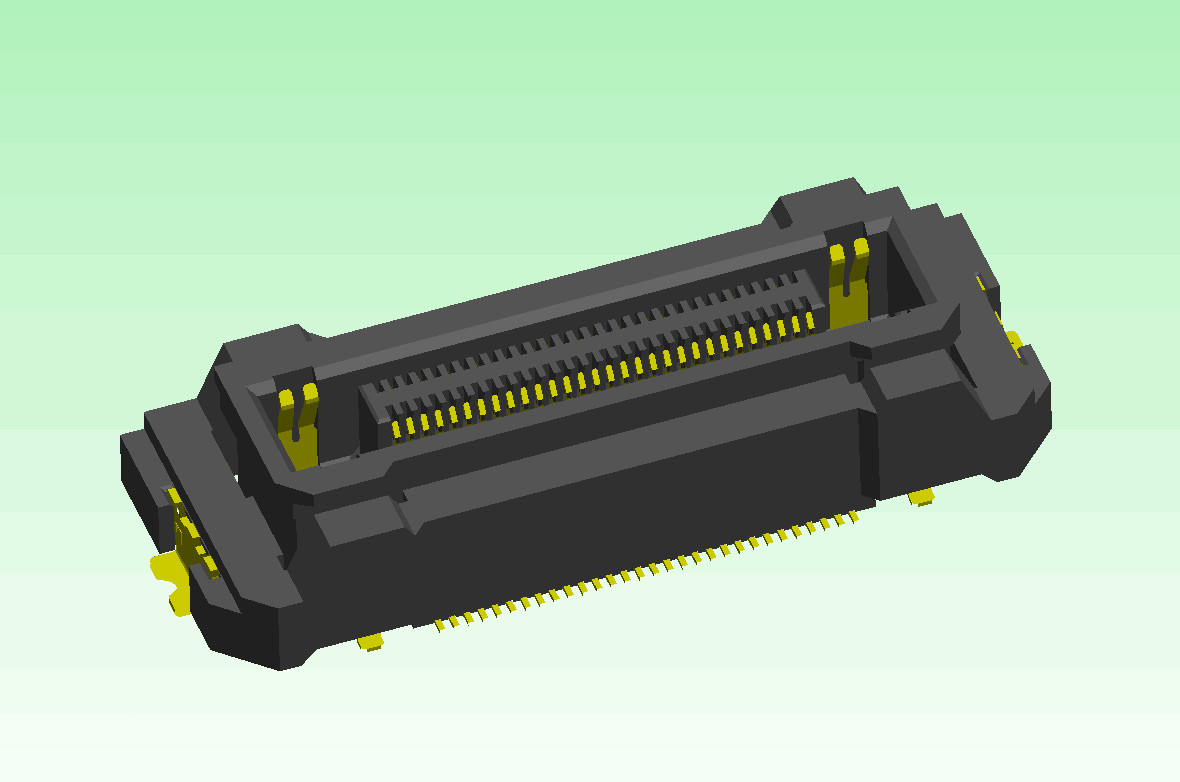

Floating Board To Board Connector Female Header 0.5mm Pitch

Basic Information
Place of Origin: CHINA
Brand Name: JiLN
Certification: UL/Rosh/SGS
Model Number: 3726FXXX060XXFX01
Minimum Order Quantity: 500-1000pcs
Price: Negotiation
Packaging Details: Reel packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 800000Kpcs
Material: LCP/PS9T Position: 20P To 160P
Samples: 10-20pcs For Free Picth: 0.5mm
Color: Black/White Package: Reel Packing
High Light:

20P Floating Board To Board Connector

,

LCP Floating Board To Board Connector

,

0.5mm Pitch Pcb Board Connectors

Products Description



Floating Board To Board Connector Female Header  0.5mm Pitch









This product family is a series of Board-to-Board connectors from Jinling Electroincs with a mission to meet all the needs of the industrial market with maximum functionality.



Floating connector will never stop pursuing the highest level of functionality for its floating design and high speed transmission connectors, as well as cutting-edge technology for tomorrow’s innovative applications.



Board-to-board connectors are the most powerful connector products of all connector product types, widely used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing industry etc.



At present, the main spacing of the board-to-board connectors is 0.4mm, 0.5mm, 0.635mm, 0.8mm, 1.00m, etc.











SPECIFICATIONS:

MATERIAL

UL No#

Contact Material
Phosphor Bronze/brass
Insulator Material
PA6T/PA9T/LCP
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
0.5A
Insulation Resistance
1000MΩ Min
T&R packing :
Reel packing
soldering type
SMT
Operation Temperature:
-40 ℃ to +105





Floating Board To Board Connector Female Header  0.5mm Pitch 0
Floating Board To Board Connector Female Header  0.5mm Pitch 1





Features:



High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant



Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.



We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



Engineering drawing:



3726FXXX060XXFX01(Female Header).pdf Engineering drawing(female header)

Floating Board To Board Connector Female Header  0.5mm Pitch 2
