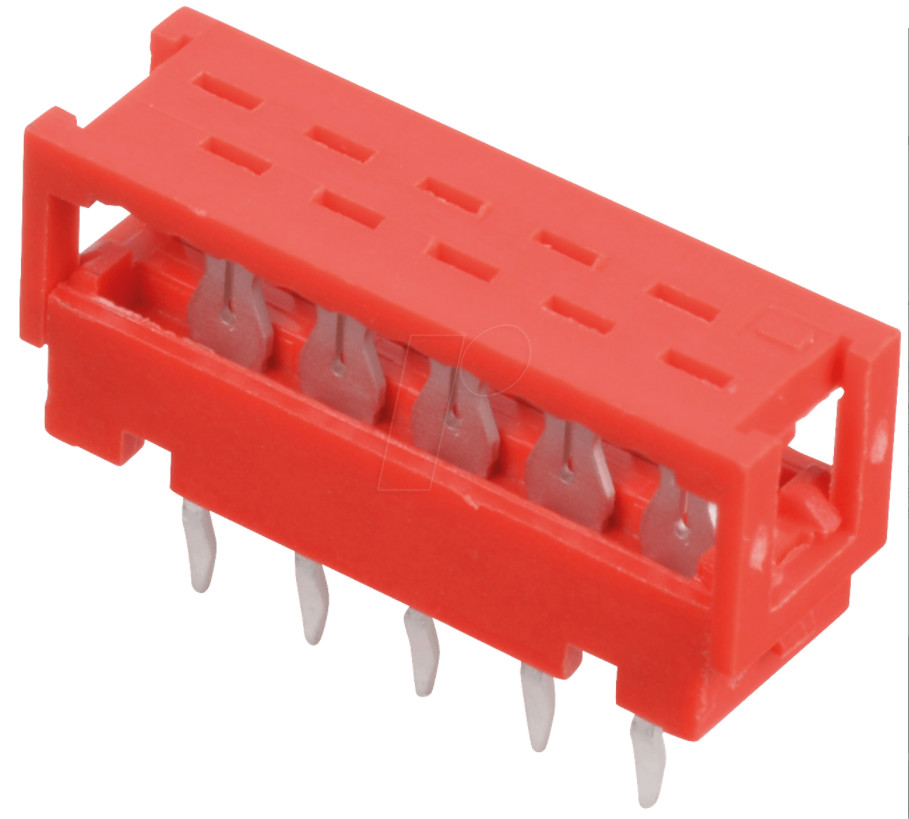

IDC Soldering PA46 PBT 14 Pin PCB Connector For Cable Assembly

Basic Information
Place of Origin: SHENZHEN
Brand Name: JiLN
Certification: UL/CUL/Rosh/SGS
Model Number: 4000XXMISNXNT03
Minimum Order Quantity: 500pcs
Price: Negotitation
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, , T/T, Western Union,
Supply Ability: 8000000Kpcs
Material: PA46/PBT Color: Red Or White
Soldering Type: DIP/SMT/IDC Type Clip Material: CeCu(Beryllium Copper)
Gender: Male Header Plating: Au Or Sn Over 50U"Ni
High Light:

PA46 14 Pin PCB Connector


PBT 14 Pin PCB Connector


IDC Soldering Cable Assembly Connector

Products Description

1.27mm PCB connector Micro Match, 14-pin For Cable Assembly.






UL No#
Contact Material
Phosphor Bronze/brass
Insulator Material
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
Current Rating
Insulation Resistance
1000MΩ Min
Package :
Tube packing/PE bag packing
soldering type
Operation Temperature:
-40 ℃ to +105


Engineering drawing:(Support Download)


4000-XXMMSNXNX01 SMT.pdf    Matching Part


IDC Soldering PA46 PBT 14 Pin PCB Connector For Cable Assembly 0




The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The female contacts have a contact spring system that prevents fretting corrosion. A positioning spring absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant.


These Micro-MaTch Female-on-Board PCB sockets feature a kinked leg design for secure retention to the PCB. Versions are available with a top or side entry and locking latches for a secure mating connection.





High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant
