|Current Rating:||1AMP||Operating Temperature:||-40℃ To+105℃|
pcb pin header,

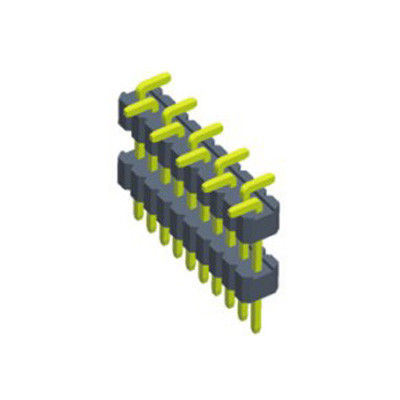

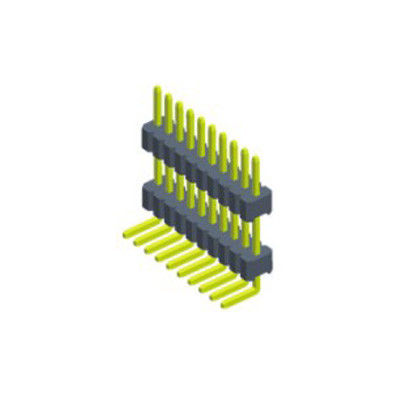

right angle pcb header
0.8*1.2mm Board Spacer Dual Row SMT

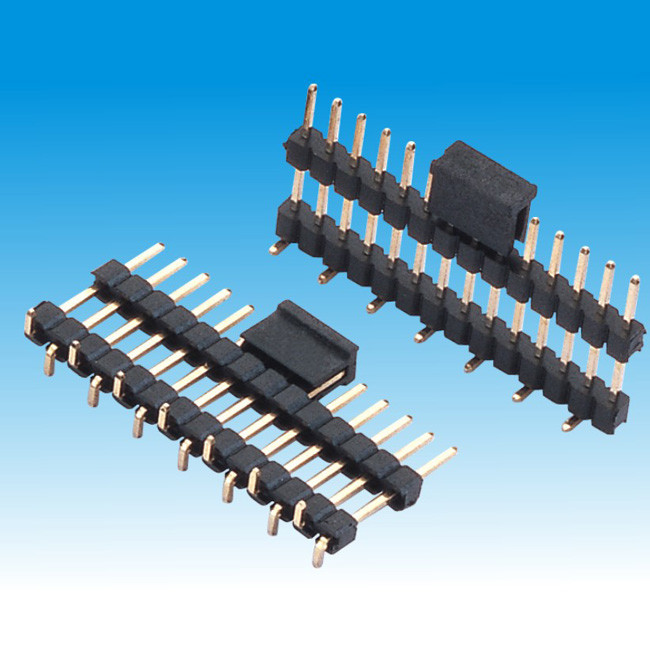

1.27mm 0.40SQ Pin Header Single Row SMT

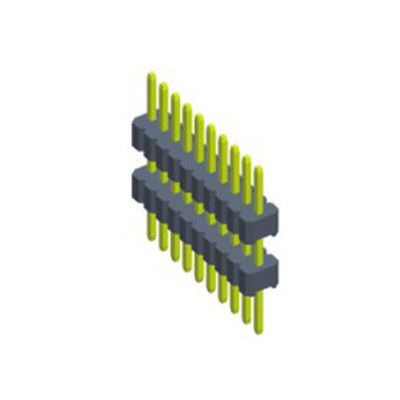

Pin header is a type of electrical connector, this connectorare widely used in electronic or instrumentation of PCB (Print Circuit Board) function as bridge between two PCBs which were blocked, and used to take current or signal transmission
pin header is a form of electrical connector. It consists of one or more rows of male pins typically spaced 2.54mm (0.1 in) apart, but common sizes also include 5.08mm (0.2 in), 5.00 mm (0.197 in), 3.96mm (0.156 in), 2.00 mm (0.079 in), 1.27 mm (0.05 in) and 1.00 mm (0.04 in). The distance between pins is commonly referred as pitch in the electronic community.
1. Rated Current: 1AMP
2. Contact Resistance: 20mΩ Max
3. Withstand Voltage: 500V AC/DC
4. Insulation Resistance: 1000mΩ Min
5. Operation Tempature: -40℃-+105℃
6. Contact Material: Brass
7. Contact Plating: Au or Sn over 50 u" Ni
8. Insulator Material: Polyester(UL94V-0)
9. Stand: PA6T
10. Max.Processing Temp: 230℃ for 20-30 Seconds(260℃ for 10 Seconds)
JINLING ELECTRONICS was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.
We Owned :
1. 20,000 square meters factory, > 600 workers
2. 30 sets precision mold processing equipment
3. 34 sets precision plastic injection machine
4. 24 sets high -speed precision punch
5. 240 sets hardware terminal molds
6. 35 sets laboratory tester
7. > 200 sets machines automatic assemble machine
The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.
Complete Testing Equipment:
To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements
Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).
Q: How about samples? is it free ?
A: 20 Piece free sample is available, If you would like to pay the freight fees.
Q: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.
Q: What about your leading&delivery time?
A: Leading time according to your quantity, and usually delivery time is 5~7 working days
Q: Do you have UL certificate? and others?
A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.
