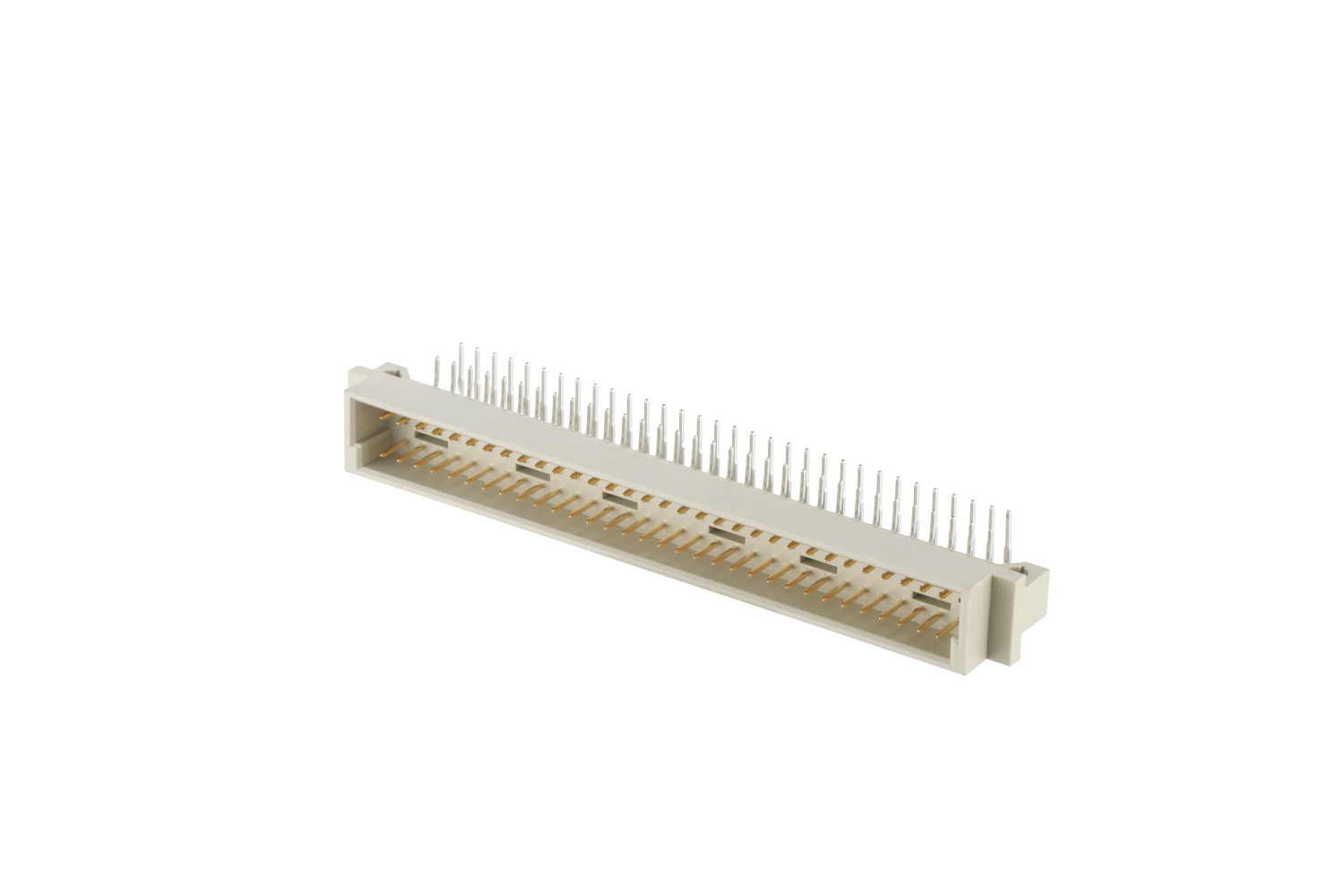

DIN 41612 Connector Male Header Three Row Right Angle Type
Selective Gold Flash (396 348 330)
The DIN 41612 connector is a high pin-count connector suitable for providing connections from cards to motherboards in bus based systems. The connectors have contacts arranged in rows, typically one two or three, with two and three being the most common.
DIN 41612 covers connectors which are designed with single, double or triple rows or Four rows or Five Rows of contacts.The standard labels these as rows A, B and C(D and F). The connectors have 16 or 32 columns making it possible to house 16, 32, 64 or 96 contacts.
The rows are 0.1in (2.54mm) or 0.2in (5.08mm) pitch and connectors built to meet the DIN 41612 standard are completely interchangeable with those of other DIN 41612 connectors as it is very common for applications to call for product from a variety of manufacturers.
Insertion and removal force are covered and it is commonplace for the female connector to incorporate press fit contacts instead of solder pin to protect the backplane from heat.
The standard has been upgraded to international standards IEC 60603-2 and EN 60603-2.
1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.
1. Do not worry, it will be best services.
2. Consult us immediately.
3. We will get back to you the first time.
4. It's my pleasure.
Engineering drawing:(Support Download)
35113XXAMRXXBN01 396 348 330 Model (1).pdf
35112XXAMRXXBNA1.pdf Right Angle Type

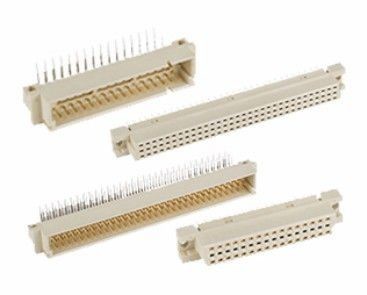

Matching Part:(Female Header)
35112XXBFSXXBNA1.pdf DIP Type
35112XXAFRXXBN01-.pdf Right Angle Type
