| Place of Origin: | China |
|---|---|
| Brand Name: | JILN |
| Certification: | UL/CUL/Rosh/SGS |
| Model Number: | JL332W |
| Minimum Order Quantity: | 1000PCS |
| Price: | 0.01-1USD |
| Packaging Details: | Tube packing/PE bag packing |
| Delivery Time: | 7-10 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 30000000PCS per Month |
| Insulator Material:: | PA66 | Rated Current: | 300V,12A |
|---|---|---|---|
| Withstand Voltage: | 2000VAC/DC | Insulation Temperature: | -40℃~+105℃ |

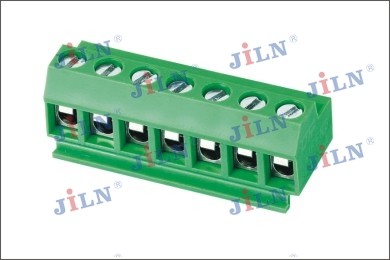

| Name: | Terminal Block Connector | Pitch: | 5.00mm Pitch |
| Color: | Green | Screw: | M2.5 |
| High Light: | NI Plating PCB Screw Terminal Blocks,PCB Screw Terminal Blocks AC2000V,PA66 M2.5 Pcb Terminal Connector |
||
| Rated Currency: | 300V,12A |
| Dieletric Strength: | AC2000V/1 Minute |
| Insularion Resistance: | 500mΩ Min |
| Contact Resistance: | 20mΩ Max |
| Screw Torque: | - |
| Wire Range: | 22-14AWG 2.5M㎡ |
| Strip Length: | 5-6mm |
| Term. Range: | -40℃~+105℃ |
| Max Solering | +250℃.5S |
| Housing Material: | PBT(UL94 V-O) |
| Contact: | Steel, Tin Plating |
| Clamp: | Brass/Steel, NI Plating |
| Wire Protector: | Brass,Ni Plating |
| Screw: | - |
Company History:
JINLING ELECTRONICS was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.
The company has passed the ISO9001:2015quality management system certification and ISO14001:2015 environmental management system certification,IATF 16949 system certification and passed CE certification and TUV certification. Connectors and wires of our company has passed United States UL safety certification.(UL NO.: E362810) and (UL NO.: E472355),terminal blocks(UL NO.:E484895).
Products are widely used in: industrial and power control, electronic communications, security, LED photoelectric, liquid crystal display, inverter, servo system, medical equipment, automotive electronics, computer motherboards, printers,electronic toys, all kinds of consumer electronics, electrical appliances and other industries,provide reliable connectors for domestic and foreign customers.
Factory area:more than 20,000 square meters,has 8 production bases,Number of employees:more than 1000 people.product specifications:more than 60,000.Average daily production capacity:exceed 4 million pcs.
Quality service and integrity are always the enterprise concept we constantly pursuing to improve. And the concept is always in our in our R&D, designing and manufacturing of products. With the concept, we will timely deliver good quality products to you.
