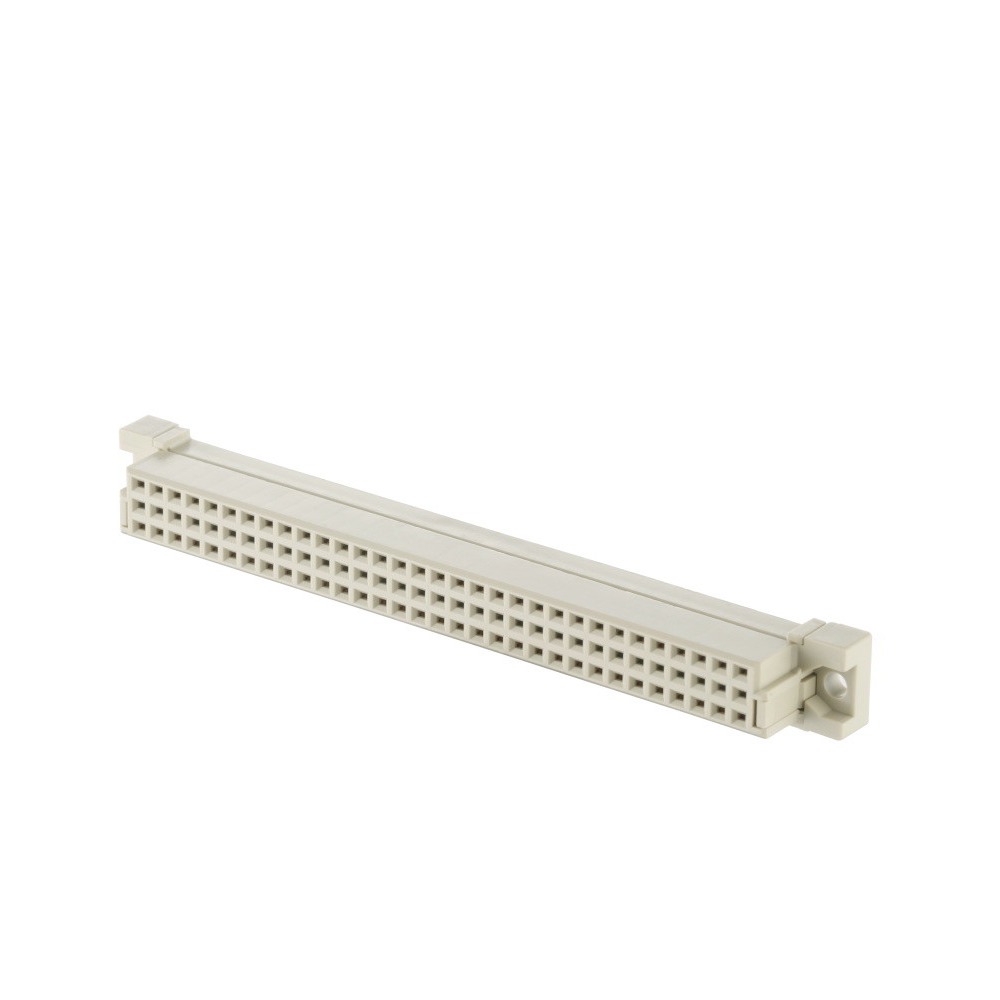

PCB Three Row Dip PBT 396 Female Socket Connector

Basic Information
Place of Origin: SHENZHEN
Brand Name: JiLN
Certification: UL/CUL/Rosh/SGS
Model Number: 3511-396AFSS0BNA1
Minimum Order Quantity: 500pcs
Price: Negotitation
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, , T/T, Western Union,
Supply Ability: 8000000Kpcs
Material: PBT Color: White Or Black
Soldering Type: DIP/Right Angle Clip Material: CeCu(Beryllium Copper)
Gender: Female Header Plating: Au Or Sn Over 50U"Ni
Connector: DIN 41612 Connectors Type Application: PCB
Type: 2.54mm Din 41612 Connector
High Light:

PBT 396 Female Socket Connector


Dip 396 Female Socket Connector


PCB Right Angle Header Connector

Products Description


Din 41612 Connectors 396 Female Socket Three Row Dip Type Selective Gold Flash Tray Packing






UL No#
Contact Material
Phosphor Bronze/brass
Insulator Material
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
Current Rating
Insulation Resistance
1000MΩ Min
Package :
Tube packing/Tray packing
soldering type
DIP/Right Angle
Operation Temperature:
-40 ℃ to +105





DIN 41612 covers connectors which are designed with single, double or triple rows or Four rows or Five Rows of contacts.The standard labels these as rows A, B and C(D and F). The connectors have 16 or 32 columns making it possible to house 16, 32, 64 or 96 contacts.


The rows are 0.1in (2.54mm) or 0.2in (5.08mm) pitch and connectors built to meet the DIN 41612 standard are completely interchangeable with those of other DIN 41612 connectors as it is very common for applications to call for product from a variety of manufacturers.


The standard has been upgraded to international standards IEC 60603-2 and EN 60603-2.




High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long life span

wear resistant



1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.


We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.


Engineering drawing:(Support Download)



35112XXBFSXXBNA1.pdf    DIP Type

35112XXAFRXXBN01-.pdf   Right Angle Type

PCB Three Row Dip PBT 396 Female Socket Connector 0

PCB Three Row Dip PBT 396 Female Socket Connector 1
