| Place of Origin: | China |
|---|---|
| Brand Name: | JILN |
| Certification: | UL/CUL/Rosh |
| Model Number: | 3340XXRXXXXLX01 |
| Minimum Order Quantity: | 500pcs |
| Price: | negotiable |
| Packaging Details: | Tube packing/PE bag packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 8000000Kpcs |
| Insulator Material:: | Polyester LCP/PA9T | Rated Current: | 3AMP |
|---|---|---|---|
| Withstand Voltage: | 200VAC/DC | Contact: | Phosphor Bronze |
| Surface Treatment:: | AU Over Ni | Number Of Pins: | 10~100p |
| High Light: | Phosphor Bronze Box Header Connector,Box Header Connector 200VAC,Smt Header Connector PA9T Insulator |
||

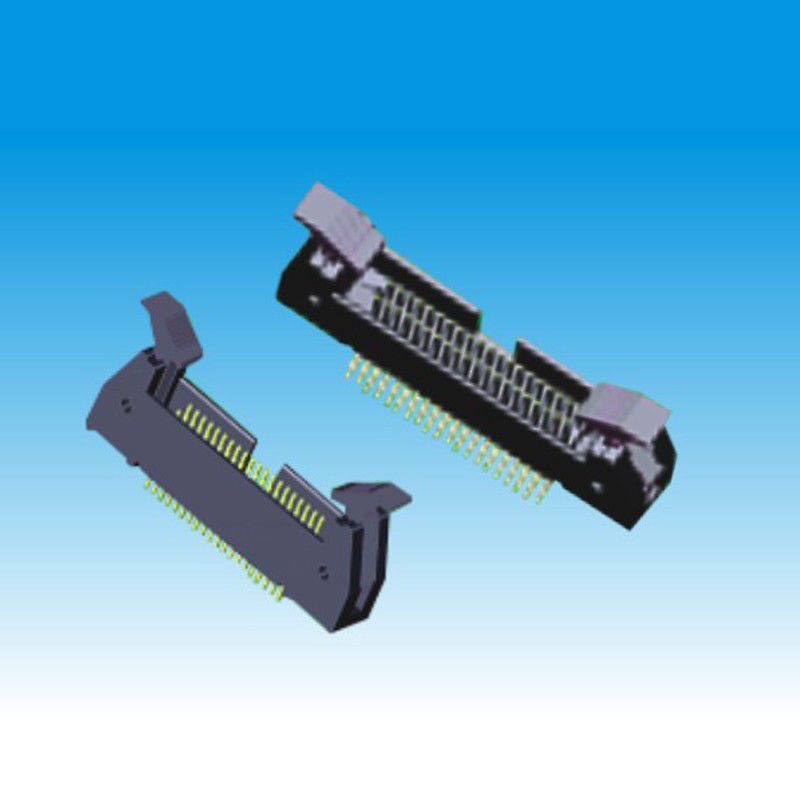

1.27X2.54 Ejector Header Connector PA9T Insulator Right Angle Type
| Contact Material | Brass Gold plated |
| Insulator Material | PA9T/LCP |
| Contact Plating | Gold plated |
| Withstanding Voltage | 1000V AC/minute |
| Insulation Resistance | 1000MΩ Min |
| Package : | Reel packing/tube packing/ bag packing |
| soldering type | Straight |
| Max ProcessingTemperature: | -230 ℃ for 30~60S (260℃ for 10S) |
| Contace Resistance: | 20 MΩ Max |
| Packing Method: | Tray |
Company Information:
Company history:
In July,2004, Shenzhen Jinling Electronic CO., Ltd was established, the company focused on connector metal stamping mold R&D , manufacturing and plastic mold and assembly.
In June,2005 the company has passed the CQC certifications ISO9001:2008 and ISO14001:2004.
In 2007, the company registered the trademarks”JILN”and”NETECH”
In January,2008, the product of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.
In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.
Production Capability:
The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch,
Complete Testing Equipment:
Certifications:
FAQ:
The technical feature of Board to Board Connector?
1.Flexible is the Primary point, easy and quick to install, convenient to detach.
Attempt to reduce the thickness of device, due to lower plastic height of board to board connector.
2.Board to board connector support to construct the circuit design of concise equipment.
3.Each terminal’s welding section of connector are seriously to require with excellent co- interface , in order to satisfy in processing demand of SMT.
Touch point structure, with super strength environment durability. Adopting high reliability touch solidity coupling as advance combine ability between in sockets and plugs.
