| Place of Origin: | SHENZHEN |
|---|---|
| Brand Name: | JiLN |
| Certification: | UL/CUL/Rosh/SGS |
| Model Number: | 4100XXMRSMFXX01 |
| Minimum Order Quantity: | 500pcs |
| Price: | Negotitation |
| Packaging Details: | Tube packing/PE bag packing |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, , T/T, Western Union, |
| Supply Ability: | 8000000Kpcs |
| Material: | PPS/PBT | Color: | Red Or White Or Black |
|---|---|---|---|
| Soldering Type: | DIP/SMT/RIght Angle | Clip Material: | CeCu(Beryllium Copper) |
| Gender: | Female Header | Plating: | Au Or Sn Over 50U"Ni |
Description
The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The female contacts have a contact spring system that prevents fretting corrosion. A positioning spring absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant.

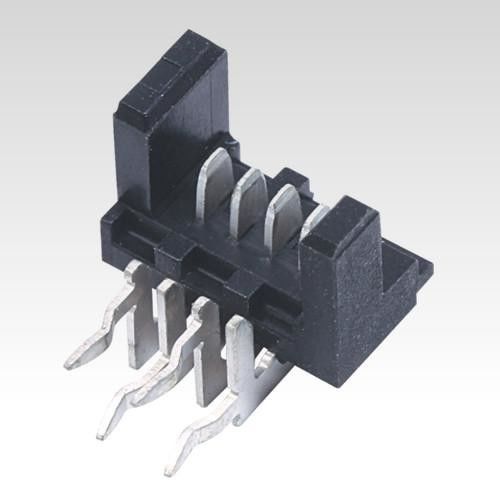

These Micro-MaTch Female-on-Board PCB sockets feature a kinked leg design for secure retention to the PCB. Versions are available with a top or side entry and locking latches for a secure mating connection.
4100XXMRSMFXX01.pdf Right Angle Type
4100XXMSSMFXX01.pdf DIP type
Matching Part:
4100XXFDXXANX01.pdf DIP Plug
4100XXFIXXANX01.pdf IDC Type
4000XXFSSNXNX01.pdf DIP Type
4000XXFRSNXNT01 Right Angle.pdf Right Angle
4000XXFMSNXWR01.pdf SMT Type
Shenzhen Jinling Electronics was established 2001 and specialized in R&D and manufacturing of precision connectors,industrial terminal blocks and cable assemblies.
Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.
To provide high quality and best performance-to-price ratio products from customers,we have realized integrated production from the plastic and hardware terminals,design and development of mold,precision plastic ejection molding and high speed precision hardware punching,and automatic assembly of the products,to implementation of one-stop production and service.
we based on the domestic and aiming at the world,Striving to provided customers with high-quality and best-price products.The company has passed the ISO9001:2015quality management system certification and ISO14001:2015 environmental management system certification,IATF 16949 system certification and passed CE certification and TUV certification. Connectors and wires of our company has passed United States UL safety certification.(UL NO.: E362810) and (UL NO.: E472355),terminal blocks(UL NO.:E484895).
JILN Quality Control
Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification. The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements
