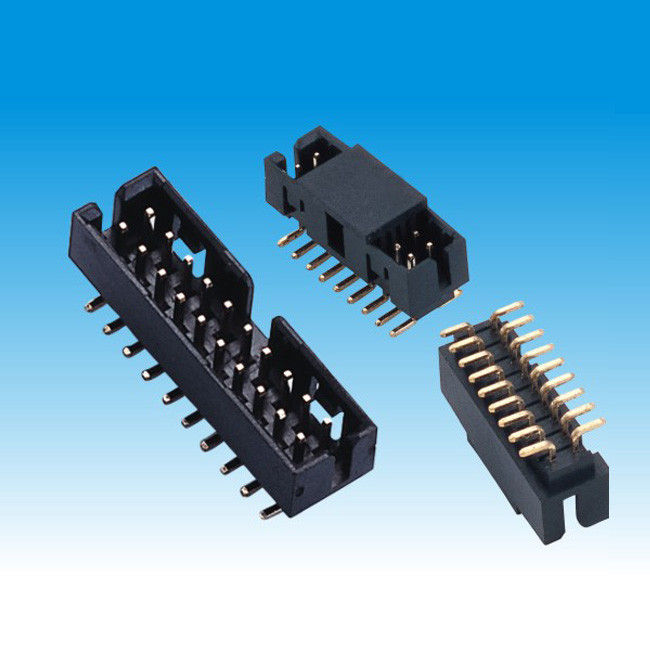

SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 3221XXG0XMBK00X01
Minimum Order Quantity: 1000pcs
Price: negotiable
Packaging Details: Tube packing
Delivery Time: 7-10 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1.5 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

bottom entry connector

,

dual row pin header

2.00mm Pitch Box Header SMT Connector Height 6.35 Gold flash Tray packing


Product description:


Box headers (BH) or shrouded headers and are normally only used in combination with insulation-displacement connectors (IDC) for ribbon cables. A notch (key) in the guide box header normally prevents placing the connector (polarised by a "bump" on one side) the wrong way around.



Normally the box header widely used in power systems, communication networks, financial manufacturing, elevators, industrial automation, medical equipment, office equipment, home appliances, military manufacturing, etc. industry.



Our business concept: integrity,gratitude and responsibility.

Our business strategy: quality first,customer first,excellence,team work!

Our service philosophy: speed,precise,considerate,carefully,elaborately,diligently.

Our business mission: creating value for customers,creating profits for shareholders,creating happiness for employees.

SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy 0
SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy 1


Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1.5A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type SMT
Operation Temperature: -40 ℃ to +105 ℃

3221-XXMXXXBK00X0X.pdf



Company Information:



Shenzhen Jinling Electronics was established 2001 and specialized in R&D and manufacturing of precision connectors,industrial terminal blocks and cable assemblies.



Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.



To provide high quality and best performance-to-price ratio products from customers,we have realized integrated production from the plastic and hardware terminals,design and development of mold,precision plastic ejection molding and high speed precision hardware punching,and automatic assembly of the products,to implementation of one-stop production and service.





Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy 2SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy 3

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

SMT 2mm Pitch Box Header , Surface Mount Headers Height 6.35 High Accuracy 4

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements





FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
