Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL ROHS
Model Number: 3511
Minimum Order Quantity: 100pcs
Price: 0.08~1.0usd/pcs
Packaging Details: Tray
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 1000000pcs per day
Application: PCB Product Name: DIN41612 Euro Connectors
Housing: Polyester PBT (UL94V-0) Current Rating: 3.0A
Color: Beige Withstanding Voltage: 1000V AC/minute
Insulation Resistance: 1000MΩ MIN Pitch: 2.54mm
Contact Resistance: 30mΩ Max
High Light:

Triple Row DIN 41612 Connector

,

DIN 41612 Connector Polyester PBT

,

3.0A UL94V-0 Male Female Connector

Products Name:

China Supplier Wholesale Different Contact Pitch Din41612 Male Female Triple Row for Connect The Motherboard And The Bus



SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Brass
Insulator Material
Polyester(UL94V-0)
Contact Resistance
30MΩ Max.
Withstanding Voltage
1000VAC
Current Rating
3.0A
Insulation Resistance
1000MΩ
T&R packing :
Tray packing
Contact Plating
Au or Sn Over Ni
Operation Temperature:
-40 ℃ to +105 ℃

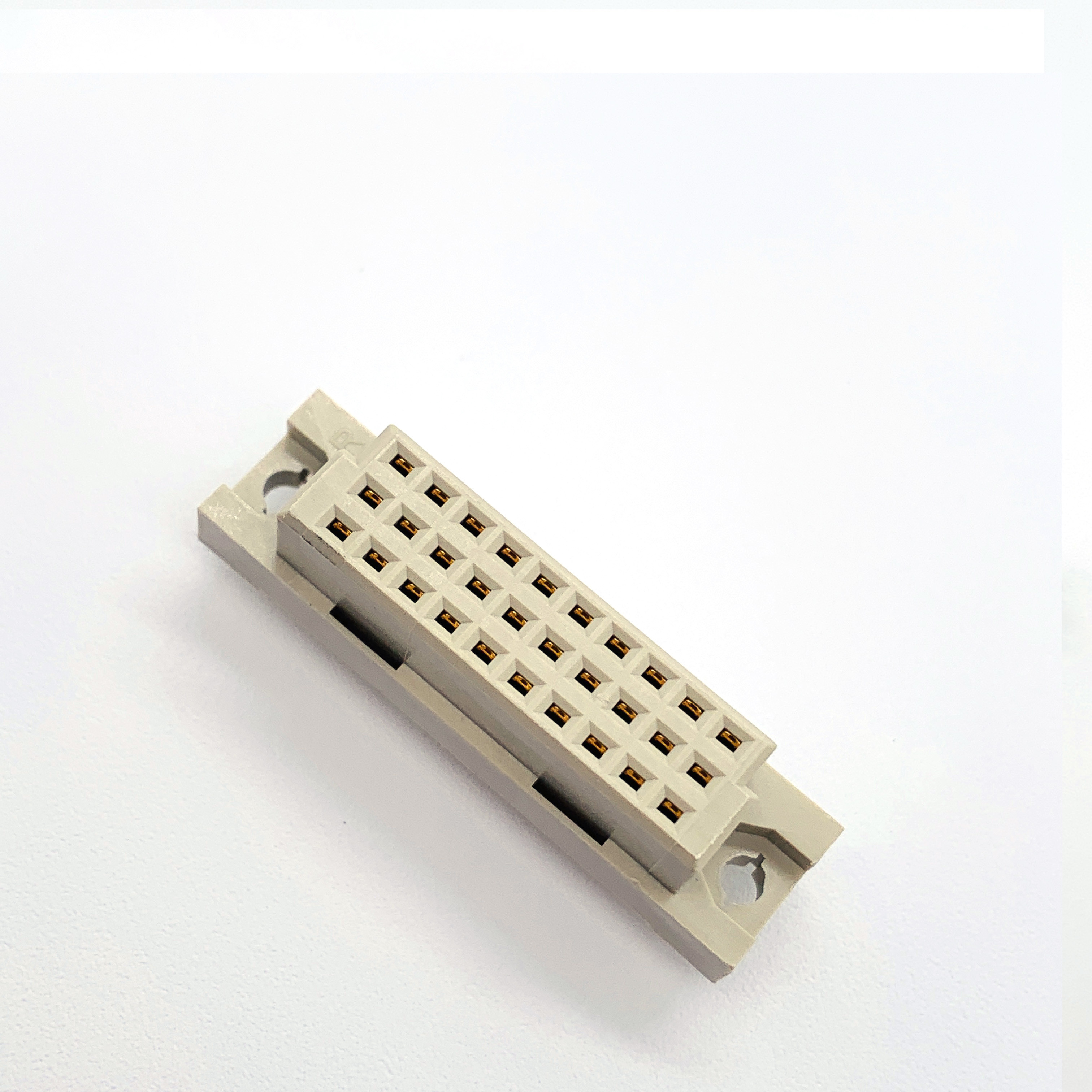

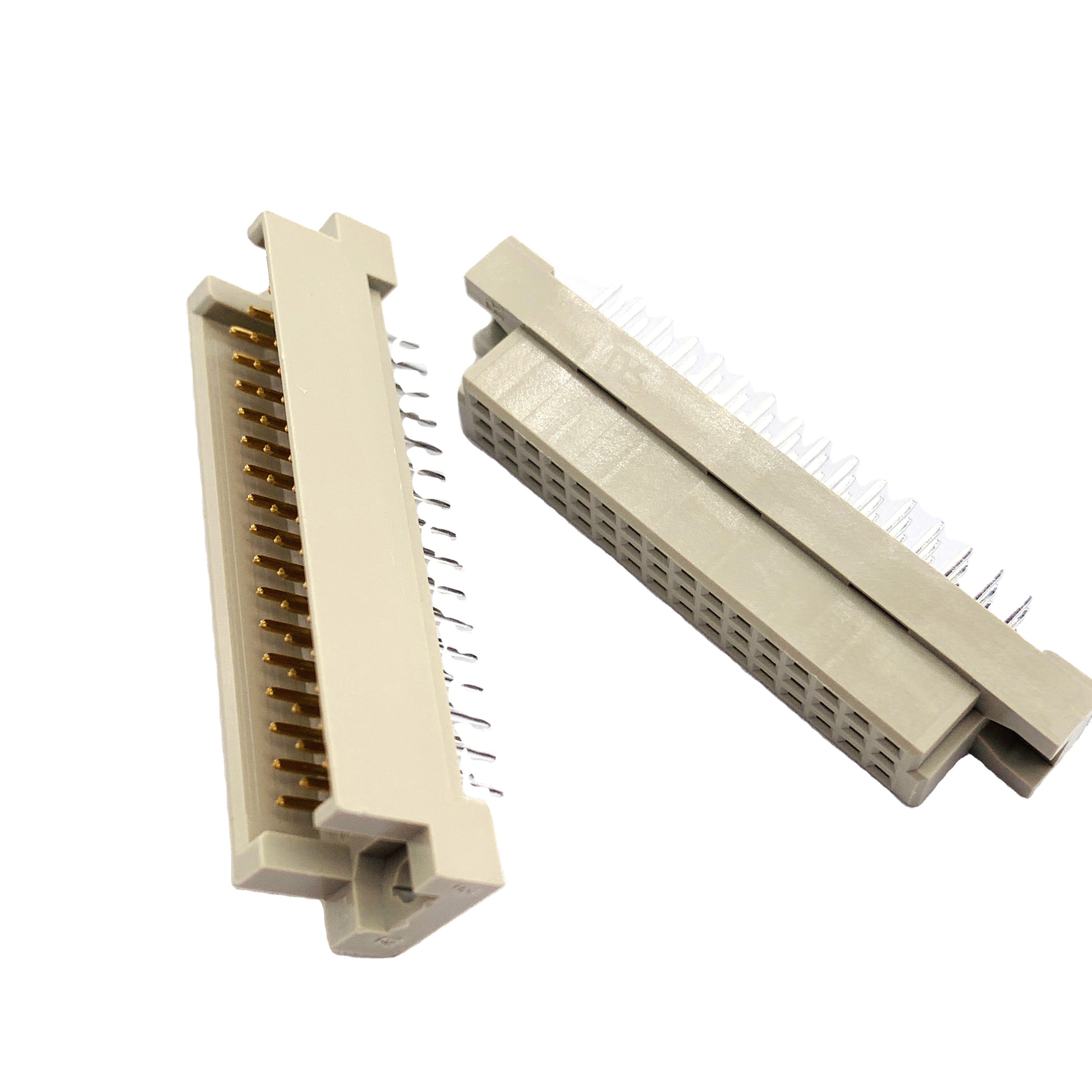

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 0

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 1

Engineering drawing:

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 2

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 3

More Detail:

Pin Number:
30/48/96P
Products Type:
DIN41612 Euro Connectors
Application:
PCB
Brand Name:
JiLN
Certifications:
RoHS



JILN Quality Control:

Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification.
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements.

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 4

Exhibition&Visiting:

Every year we attend the domestic and oversea famous electronics fair in order to promote JILN's new proudcts and brand value.
JILN committed to providing competitive solutions and diversified products of high quality to customer.

0.8mm Board To Board Connector Female Header SMT Type LCP Material

Our services:

  1. Specialized in pcb connectors over 15 years.
  2. Over 10 years experienced Engineer support OEM&ODM order.
  3. All molding stampling,tooling and electroplating processes completed in-house,
  4. Fast delivery services help customer satifisfaction rate reach 99%.
  5. Cooperation with FCI,Phoniex,Samsung,SIEMENS,PHILPS,OMRON over 5 years.
  6. Prompt delivery(3-5 work days),small MOQ(100pcs) .
  7. Hight quality,rich experienced,excellent serivce will be your reliable connector solution specialist.
  8. Used in the most of home appliances,computer,PCB,LCD,TV
  9. Our factory has over decades manufacturing experience.
  10. We can provide customers with over 10 sorts and 60,000 different specification connectors parts.

FAQ:

Q1: Why choose our company?

A:1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.

2. Our MOQ is: 100 PCS(1 PCS for sample).

3. Good quality, competitive price with best service.

4. Available for ODM/OEM order.

5. Mainly customer:

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 6Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 7

Triple Row DIN 41612 Connector Polyester PBT 3.0A UL94V-0 For Motherboard 8

Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.

Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.

Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.

Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.



Shipping ways:

Various shipping ways: FEDEX , DHL ,UPS and so on.
HONGKONG port ,we can choose it according to your request.
We can send products to your agent from Guangdo province China which is free shiping fee so that you can save the cost.

For more details and latest price, please feel free to contact us.
