Triple Row Female Header Connector , Y Type Right Angle Pin Header

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 228503XXXNXXRYX01
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 3 AMP
Withstand Voltage: 1000V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

right angle female header

,

female pin header connector

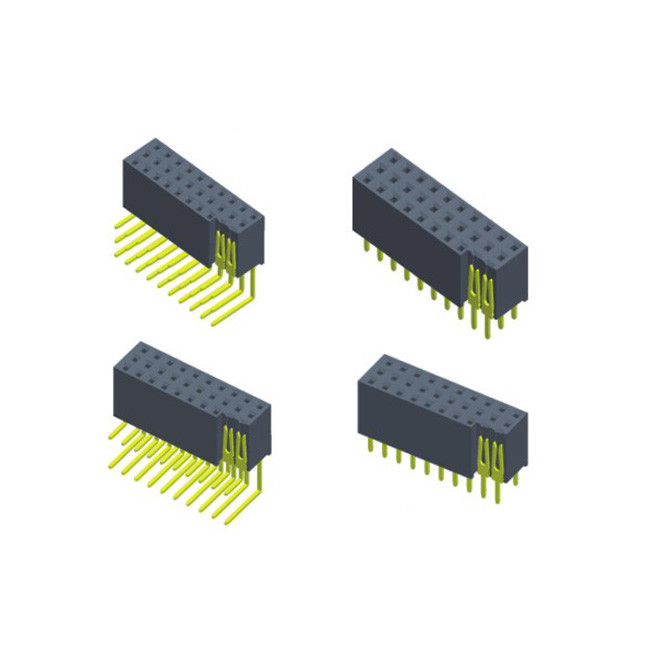

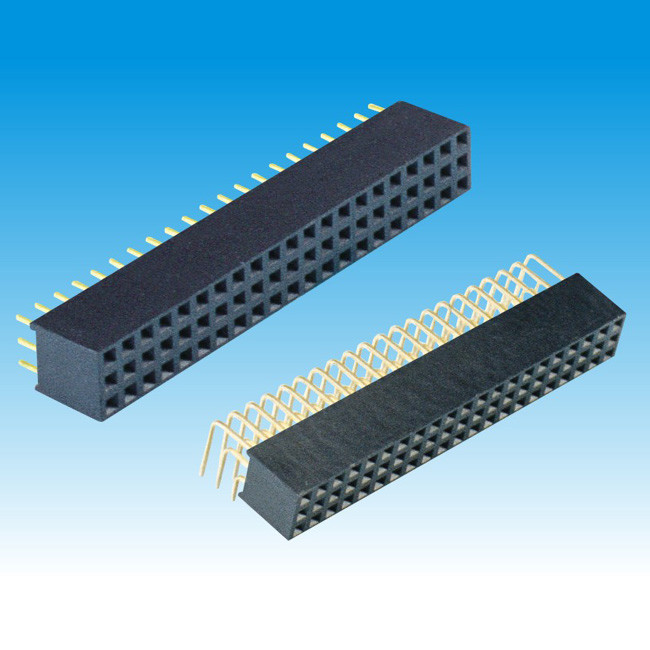

2.54 mm H 8.5 Triple Row Female Header Connector Right Angle Y Type


Product description:

Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.



Female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches male header . straight female headers are available in a variety of commonly used pin counts

female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.




Specifications:

Contact Material Phosphor Bronze
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 1000V
Current Rating 3 A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Right Angle
Operation Temperature: -40 ℃ to +105 ℃

228503XXXNXXRYX01.pdf
