1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant

Basic Information
Place of Origin: SHENZHEN
Brand Name: JiLN
Certification: UL/CUL/Rosh/SGS
Model Number: 4000-XXFSSNXNT01
Minimum Order Quantity: 500pcs
Price: Negotitation
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, , T/T, Western Union,
Supply Ability: 8000000Kpcs
Material: PPS/PBT Color: Red Or White Or Black
Soldering Type: DIP/SMT/RIght Angle Clip Material: CeCu(Beryllium Copper)
Gender: Female Header Plating: Au Or Sn Over 50U"Ni
High Light:

amp header connector

,

male header connector

Products Description

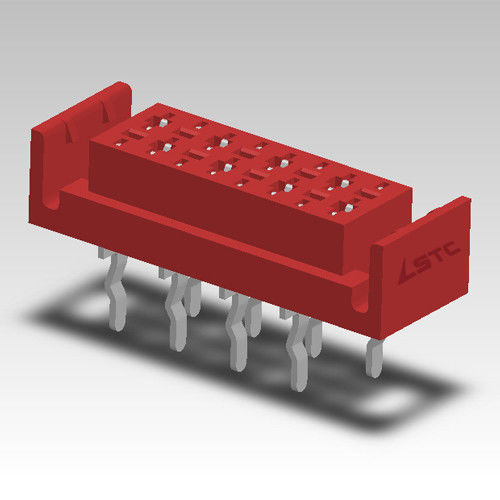

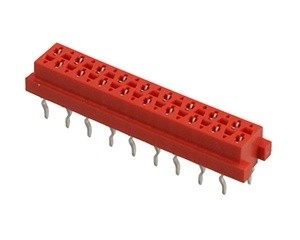

AMP-Connector DIP Type 1.27mm Mirco Match Socket Tin Plated.





1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant 0 1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant 1








SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Phosphor Bronze/brass
Insulator Material
PPS/PBT
Contact plating
Au or Sn over 50U"NI
Withstanding Voltage
200V
Current Rating
3.0A
Insulation Resistance
1000MΩ Min
Package :
Tube packing/PE bag packing
soldering type
DIP/SMT
Operation Temperature:
-40 ℃ to +105



Description



Micro-MaTch Female-on-Board PCB socket connectors for use in both vertical and right angle board to board and wire to board interconnections.



The Micro-MaTch range of connectors have a compact, space saving design with a 1.27mm pitch. The female contacts have a contact spring system that prevents fretting corrosion. A positioning spring absorbs movement between the male and female contacts caused by vibration and thermal expansion. Prevention of movement on the contact spot enables a gas tight connection to be made which makes the contact spring system fretting resistant.





Engineering drawing:(Support Download)



4000XXFSSNXNX01.pdf DIP Type

4000XXFRSNXNT01 Right Angle.pdf   Right Angle

4000XXFMSNXWR01.pdf   SMT Type

1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant 2

1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant 3









1.27mm Micro Match Connector , Amp Header Connector DIP Type Wear Resistant 4
