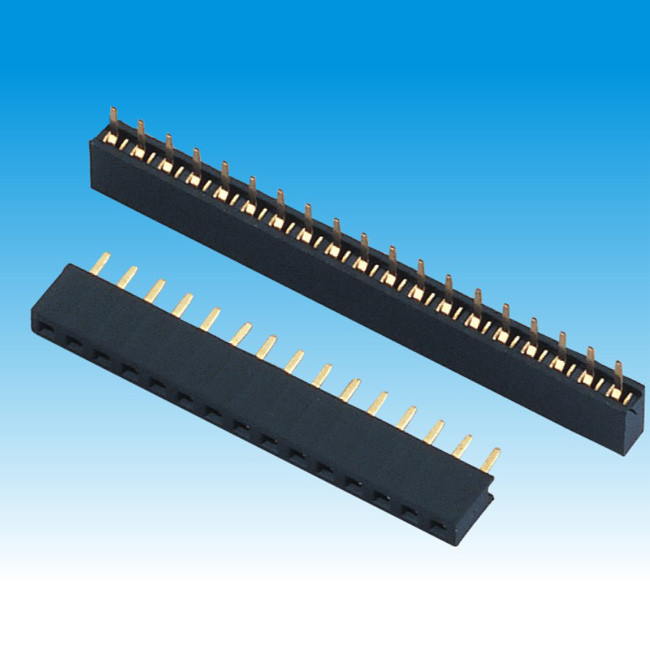

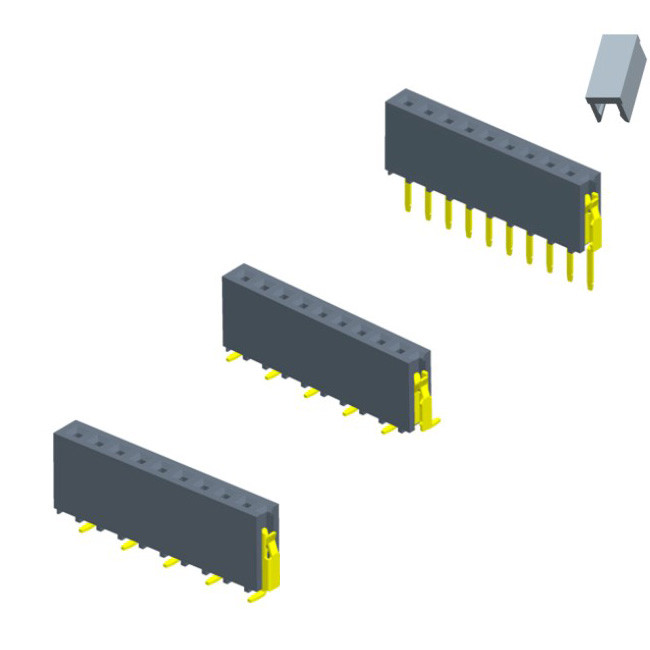

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 2343-01XXXNXXSUX01
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1 AMP
Withstand Voltage: 502V AC/DC Temperature: -40℃~+102℃
High Light:

right angle female header

,

female pin header connector

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type



Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃

2343-01XXXNXXSUX01 PC2.8.pdf

Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectorsand specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.

History:

In july 2004, Shenzhen Jinling Electrinic CO.,Ltd was established, at that time we foucuses on connectors metal stamping, mold R&D and manufacturing , plastic molding assembly and so on.

In June 2005we has passed the CQC certifications ISO9001:2008 and ISO14001:2004.

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 0

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 12.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 3

Certifications:

Our product qualified various of certifications,as show

2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 4



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.



2.0 mm Pitch Height 4.3 Single Row Female Header Connector Straight Type 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
