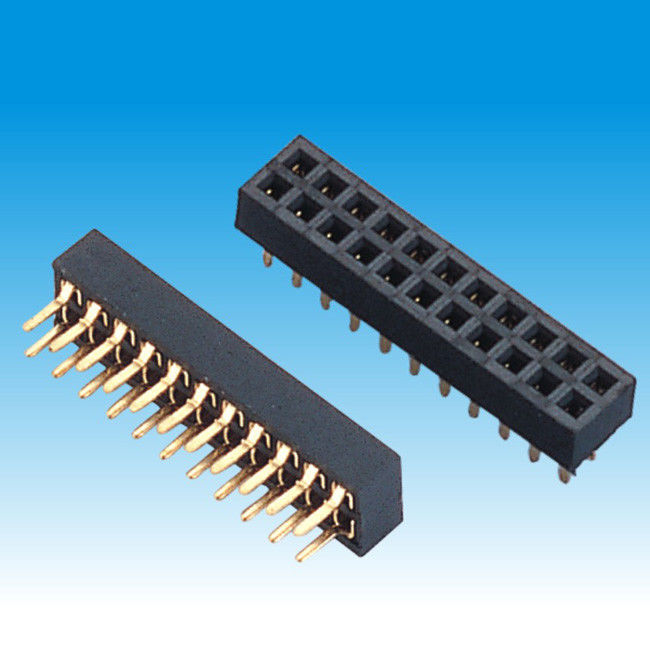

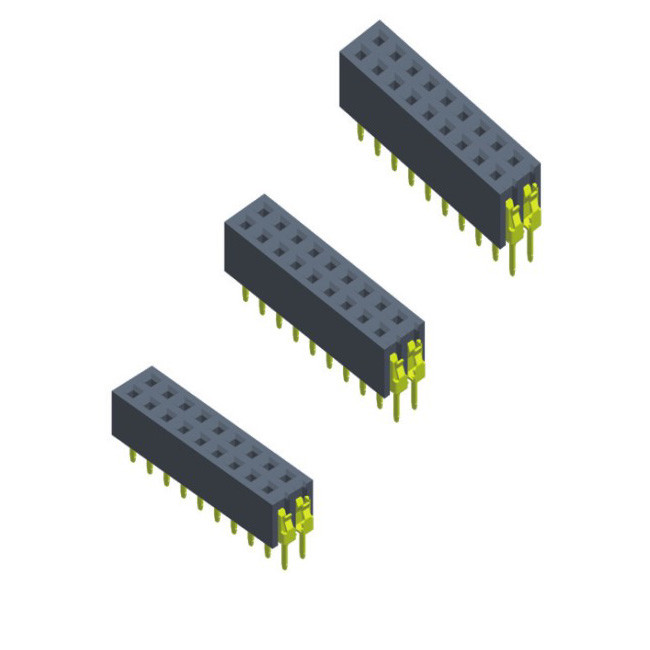

2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 223502XXXXXXMUX01 W7.2
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 3 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

right angle female header

,

female pin header connector

2.54 mm Pitch 3.5 Dual Row Female Header Connector SMT PBT Material



Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 1000V
Current Rating 3 A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃

223502XXXXXXMUX01 W7.2.pdf

Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors.With more than 10years experience in precise groupware development, degson have a team of professional technician. The R&D department is equipped with the most advanced computer integrated manufacturer system, which combines design,manufacturing and analysis in one system. We take part in international technologies exchanges and cooperation activities frequently, and provide customer with complete technological schemes on products.



Company history:

In 2007, the company registered the trademarks”JILN”and”NETECH”

In January,2008, the product of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.

In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.

In November,2008, The company has awarded three products patents and rated as excellent enterprise in Shenzhen.

In September,2010, The company was awarded”Guangdong’s Excellent Proprietary Brand” by Guangdong Entrepreneurs Association.

2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 0

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 12.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 3

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements

2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 4



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).



2.54 mm Height 3.5 Dual Row Female Header Connector SMT PBT Material 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
