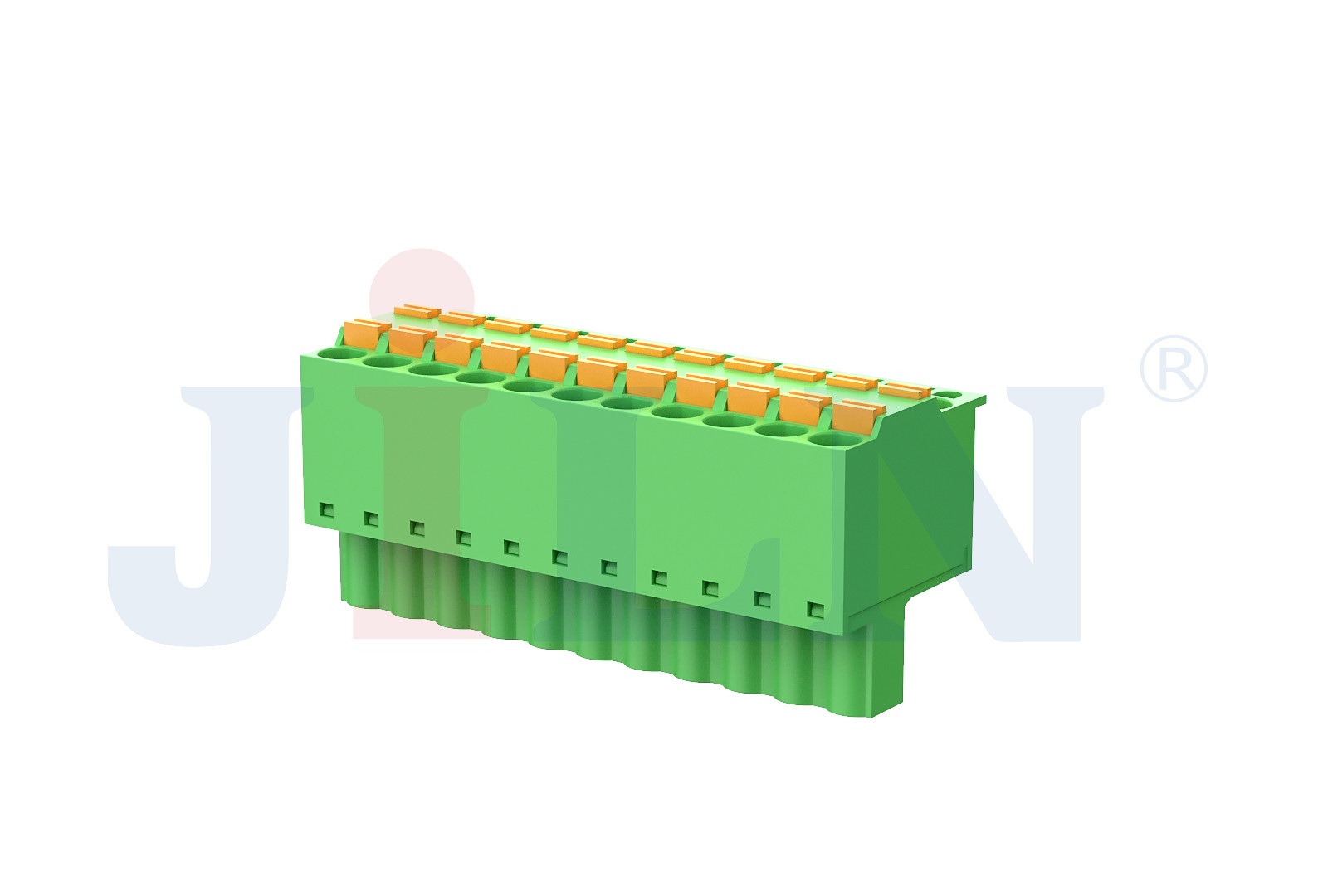

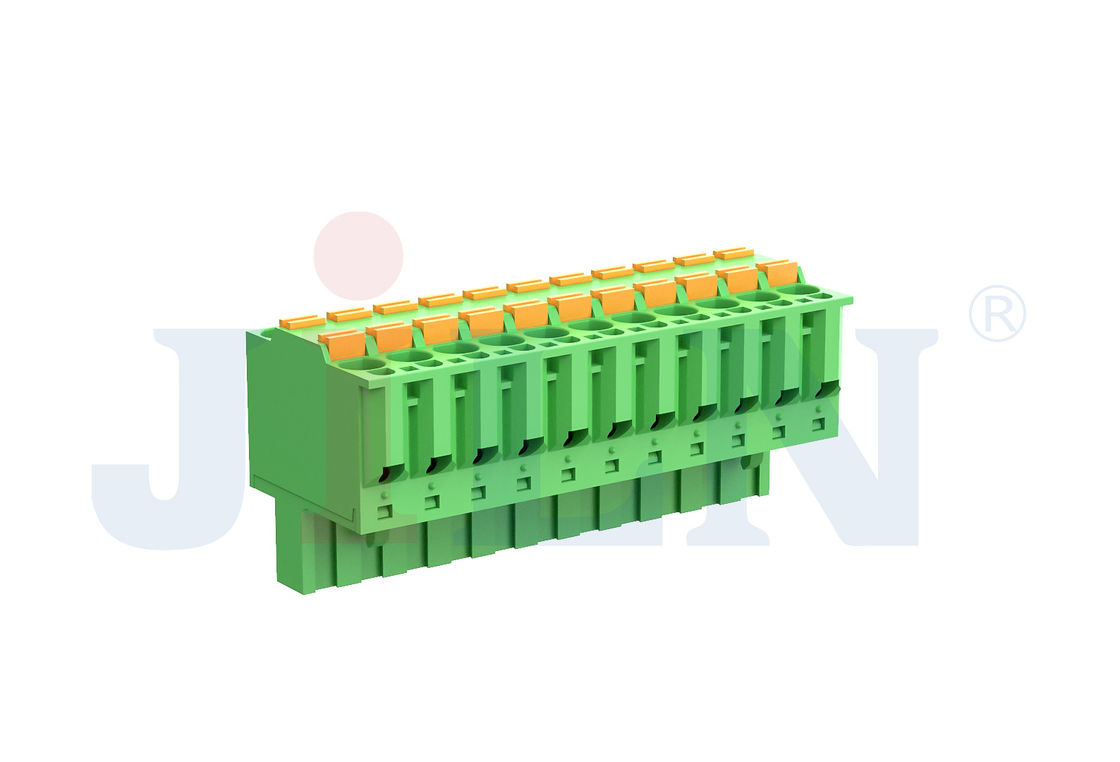

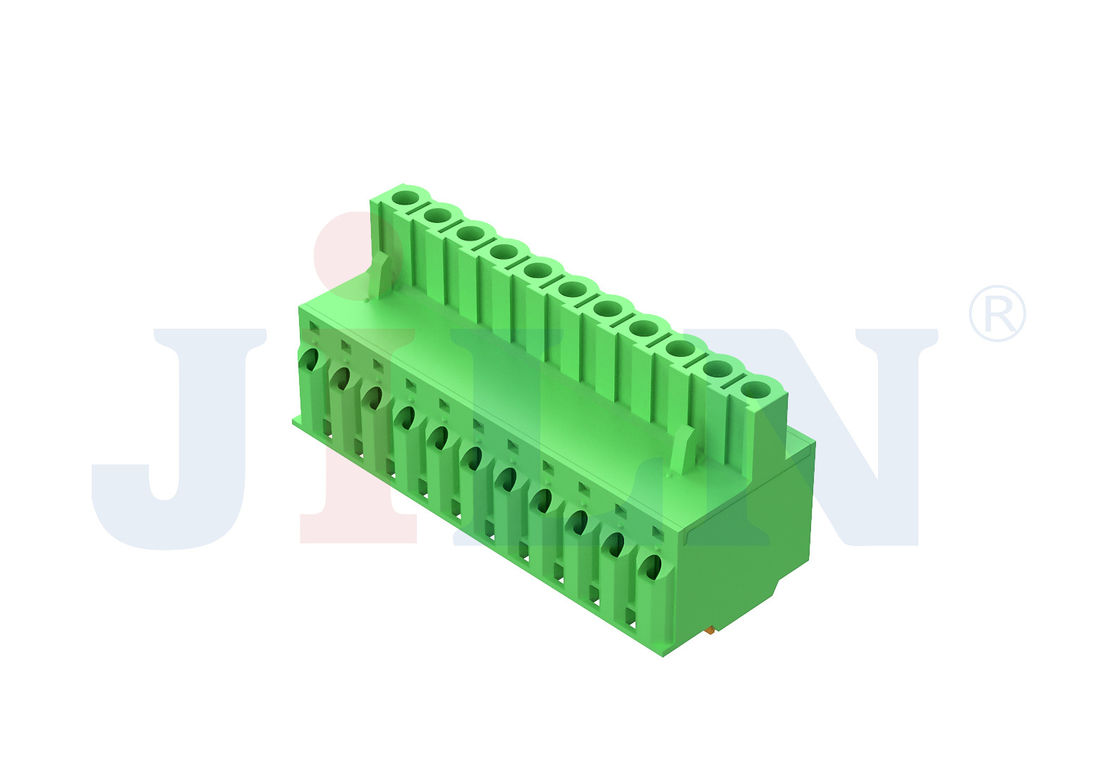

1.2Nm M4.0 Steel Pcb Terminal Connector JL2EDGKDH 4 To 48P 50U" NI

Basic Information
Place of Origin: CHINA
Brand Name: JiLN
Certification: UL/CUL/SGS/Rosh
Model Number: JL2EDGKDH-508XXG01
Minimum Order Quantity: 500pcs
Price: Negotiation
Packaging Details: PE bag packing
Delivery Time: 5-8 days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 8000000Kpcs
Hosing Material: PBT(UL94V-0) Contact: Brass
Plating Way: Tin Plated Screw: M4.0 Steel Ni Plated
Screw Torgue: 1.2Nm(10.53LB,in) Name: Terminal Block Connector
High Light:

M4.0 Steel Pcb Terminal Connector

,

1.2Nm Pcb Terminal Connector

,

50U" NI PBT Terminal Block





JL2EDGKDH-Pluggable Terminal Blocks 3.5mm Pitch 4 to 48P With Ear Green PE bag packing





Description

Terminal blocks are used to secure and/or terminate wires and, in their simplest form, consist of several individual terminals arranged in a long strip. Terminals are useful for connecting wiring to a ground or, in the case of electrical power, for connecting electrical switches and outlets to the mains.

Terminal Blocks are commonly used to connect a chassis ground, such as on a record player or surge protector. Most public address systems in buildings also use them for speakers, and sometimes for other outputs and inputs. Alarm systems and building sensor and control systems have traditionally used large numbers of screw terminations.

 SPECIFICATIONS:
MATERIAL

UL No#
E484895
Contact Material
Brass
Insulator Material
PBT
Contact plating
Au or Sn over 50U" NI
Withstanding Voltage
AC2000V/1min
Current Rating
15A
Insulation Resistance
1000MΩ /DC500V
Package :
PE bag packing
soldering type
DIP
Operation Temperature:
-40 ℃ to +105





JL2EDGKDH-508XXG01-2D.pdfEngineering Drawing



Engineering drawing:

1.2Nm M4.0 Steel Pcb Terminal Connector JL2EDGKDH 4 To 48P 50U" NI 0





Related Products



1.2Nm M4.0 Steel Pcb Terminal Connector JL2EDGKDH 4 To 48P 50U" NI 1 1.2Nm M4.0 Steel Pcb Terminal Connector JL2EDGKDH 4 To 48P 50U" NI 2



JILN Quality Control
Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification. The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements



FAQ
Q1: Why choose our company?
A: 1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.
2. Main customer:

1.2Nm M4.0 Steel Pcb Terminal Connector JL2EDGKDH 4 To 48P 50U" NI 3

3. Our MOQ is: 100 PCS(1 PCS for sample).
4. Good quality, competitive price with best service.
5. Available for ODM/OEM order.
Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.
Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.
Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.
Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.
Dear friend, if you are interested in our products, pls send me your product information, We will surely quote for you in 24 hours, thank you!
