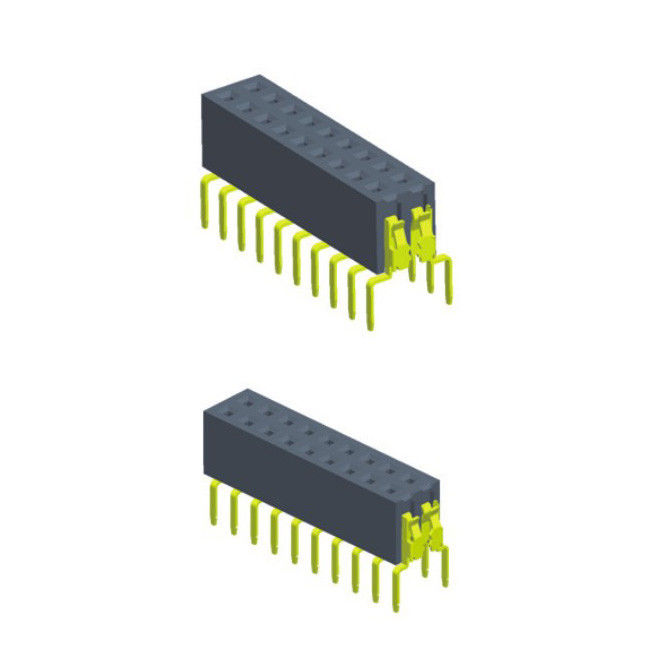

Bottom Entry Female Header Connector Height 3.5 Dual Row SGS Certification

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 2235-02XXXXXXWU01 Model (1)
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 3 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

right angle female header

,

female pin header connector

2.54 mm Height 3.5 Dual Row Female Header Connector Bottom Entry Type


Product description:

Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.


female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.



Normally the female header have single row/dual row/three row or four row, widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the male header to supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.




Specifications:

Contact Material Phosphor Bronze
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 1000V
Current Rating 3 A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃

2235-02XXXXXXWU01 Model (1).pdf



Advantage:


1. High quality.
2. Competitive price.
3. Fast delivery time.
4. Variety models and specifications.
5. Professional manufacturer.

Services:


1. Do not worry, it will be best services.
2. Consult us immediately.
3. We will get back to you the first time.
4. It's my pleasure.



Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors,was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.



we based on the domestic and aiming at the world,Striving to provided customers with high-quality and best-price products.The company has passed the ISO9001:2015quality management system certification and ISO14001:2015 environmental management system certification,IATF 16949 system certification and passed CE certification and TUV certification. Connectors and wires of our company has passed United States UL safety certification.(UL NO.: E362810) and (UL NO.: E472355),terminal blocks(UL NO.:E484895).



Our business concept: integrity,gratitude and responsibility.

Our business strategy: quality first,customer first,excellence,team work!

Our service philosophy: speed,precise,considerate,carefully,elaborately,diligently.

Our business mission: creating value for customers,creating profits for shareholders,creating happiness for employees.



Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

Bottom Entry Female Header Connector Height 3.5 Dual Row SGS Certification 0Bottom Entry Female Header Connector Height 3.5 Dual Row SGS Certification 1

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

Bottom Entry Female Header Connector Height 3.5 Dual Row SGS Certification 2

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements





FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
