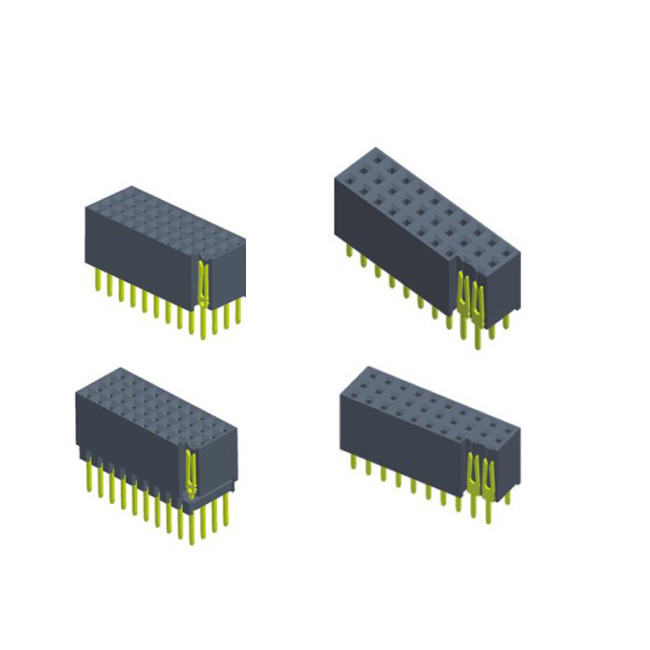

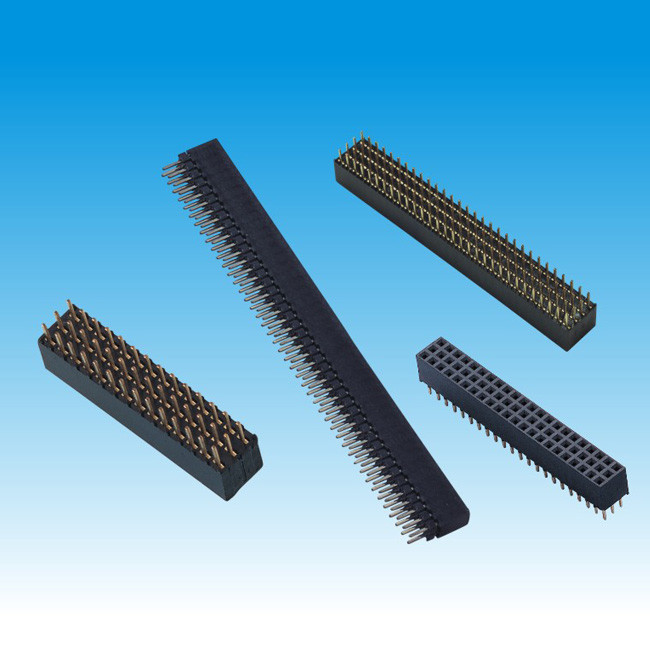

Quad Row Female Header Connector , Straight Type 2mm Pitch Pin Header

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 2363-04XXXNXXSYX01
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1.5 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

pin header female

,

right angle female header

2.0 mm Height 6.35 Quad Row Female Header Connector Straight Type


Product description:


Female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. The standard spacing is the same as on most solderless breadboards and matches male header . straight female headers are available in a variety of commonly used pin counts



female Header was made of housing contain with metal contacts. The female contacts are designed to hold or retain the male contacts. When both male and female parts of the connector come together will connecting the board to board.




Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1.5A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃

2363-04XXXNXXSYX01.pdf



Features:



High Quality Guaranteed

First Class Service

Best Prices

Stable performance

sturdy and durable

Long lifespan

wear resistant



We are looking forward to long term cooperation with customers, we will make best service and after sales service for all of our customers. If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.



Company Information:



Shenzhen Jinling Electronics was established 2001 and specialized in R&D and manufacturing of precision connectors,industrial terminal blocks and cable assemblies.



Jinling Electronics employs exquisite technology from Taiwan,the company was moved to Shenzhen and set up Shenzhen Jinling Electronics Co.,Ltd in 2004.We always follow the guideline of specialization and automatization since its establishment.We have imported advanced production and detecting devices from Japan,Germany and Taiwan.



Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

Quad Row Female Header Connector , Straight Type 2mm Pitch Pin Header 0Quad Row Female Header Connector , Straight Type 2mm Pitch Pin Header 1

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

Quad Row Female Header Connector , Straight Type 2mm Pitch Pin Header 2

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements





FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).

Q: How about samples? is it free ?

A: 20 Piece free sample is available, If you would like to pay the freight fees.

Q: What is your price term & payment terms?

A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too. 2. Payment terms: T/T, Paypal and other terms.

Q: What about your leading&delivery time?

A: Leading time according to your quantity, and usually delivery time is 5~7 working days

Q: Do you have UL certificate? and others?

A: Of course, we have , and also qualified SGS, ISO9001:2008, ISO14001:2004 etc.



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
