SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel

small.img.alt
small.img.alt small.img.alt small.img.alt
Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL ROHS
Model Number: 2343-2443
Minimum Order Quantity: 100pcs
Price: 0.011~0.46usd/pcs
Packaging Details: Tube With Cap,Reel With Cap
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 1000000pcs per day
Contact Now
Application: PCB Product Name: Female Header Connectors
Housing: Polyester PA6T (UL94V-0) Current Rating: 1.0A
Color: BLACK Withstanding Voltage: 500VAC/ Min
Insulation Resistance: 1000MΩ MIN Pitch: 1.27mm 2.0mm
Contact Resistance: 20mΩ Max
High Light:

Polyester PA6T Female Header Connector

,

SMT U Female Header Connector

,

500VAC Dual Row PCB Connectors

Products Name:

1.27 2.0mm 2-40Pin Per Row Female Header H4.3 Dual Row SMT U Type Female Header Reel With Cap PCB Connectors



SPECIFICATIONS:

MATERIAL

UL No#
E362810
Contact Material
Brass
Insulator Material
Polyester(UL94V-0)
Contact Resistance
20MΩ Max.
Withstanding Voltage
500VAC
Current Rating
1.0A
Insulation Resistance
1000MΩ
T&R packing :
Tube or Reel with cap packing
Contact Plating
Au or Sn Over Ni
Operation Temperature:
-40 ℃ to +105 ℃

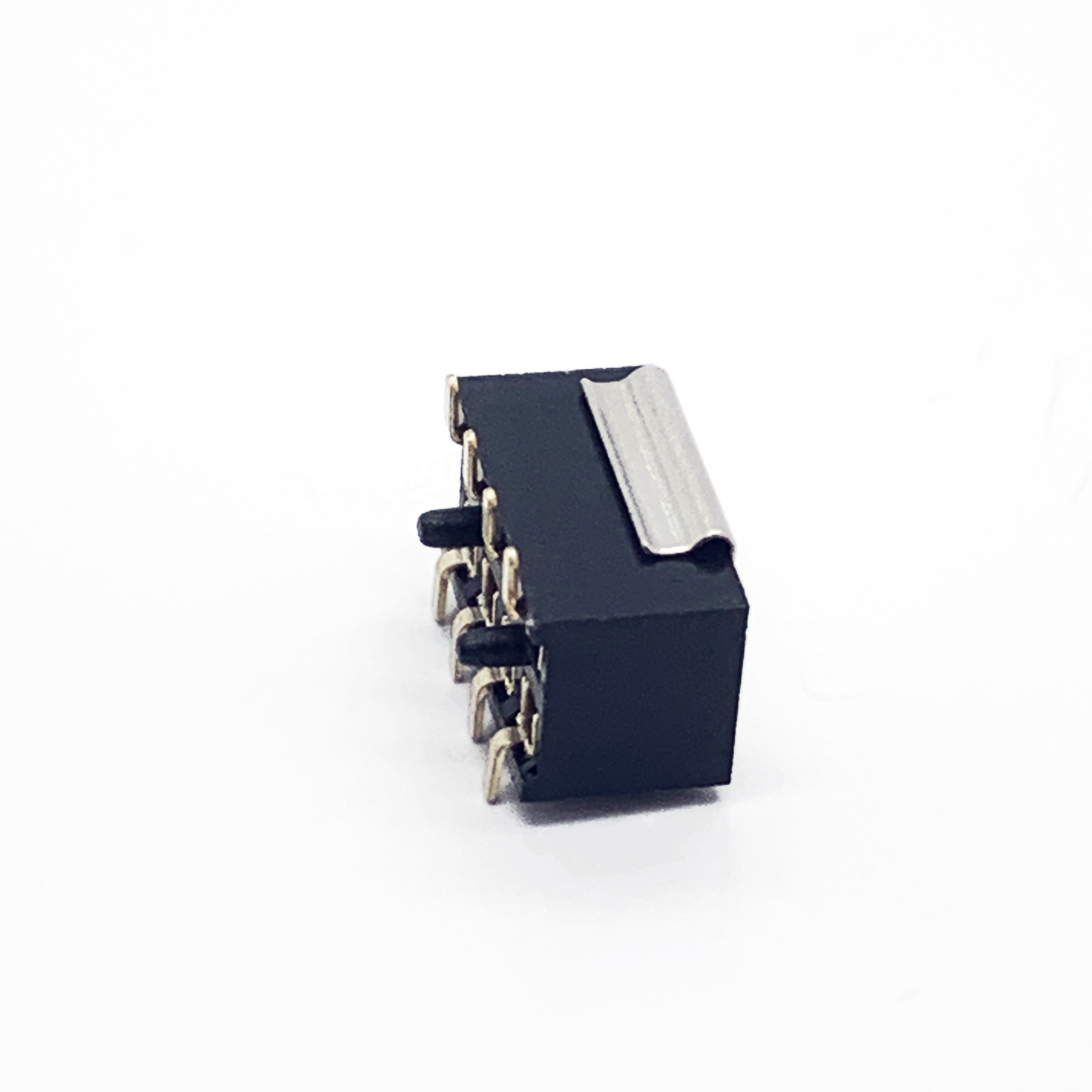

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 0​

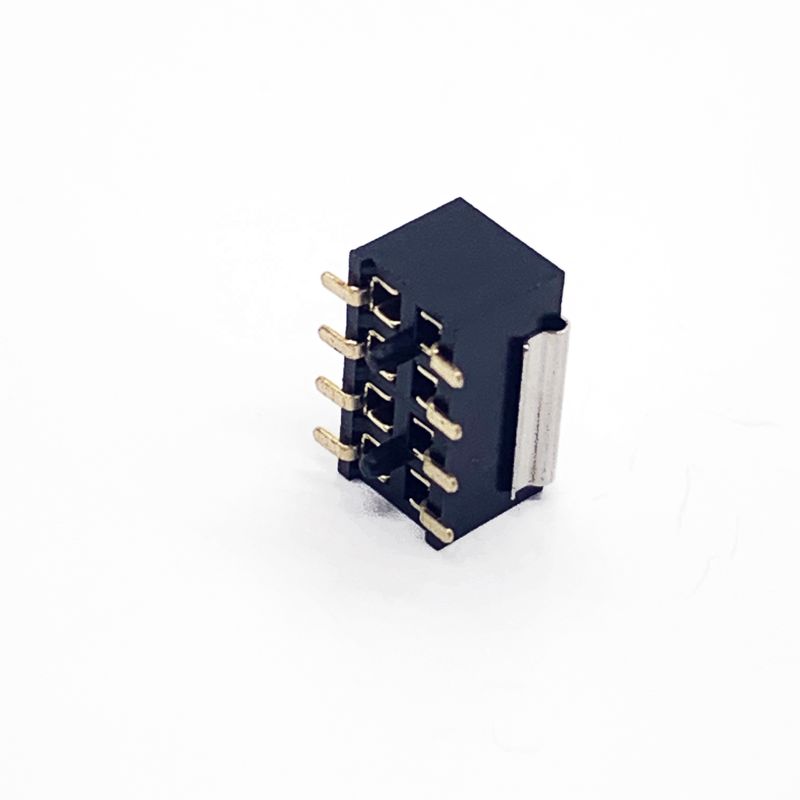

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 1

Engineering drawing:

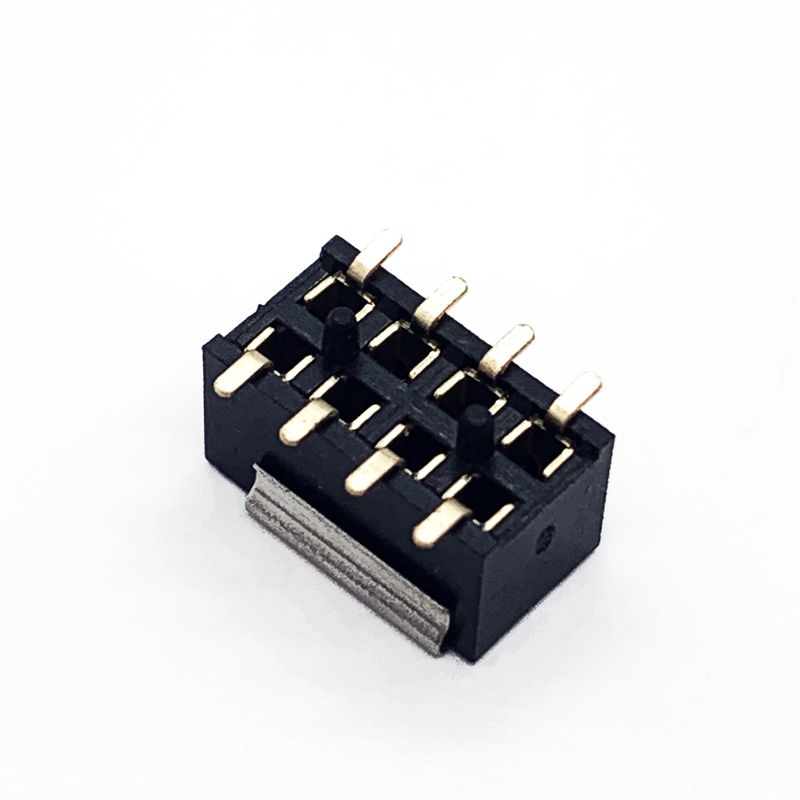

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 2

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 3

More Detail:

Pin Number:
2~40P Per Row
Products Type:
Female Header SMT Connectors
Application:
PCB
Brand Name:
JiLN
Certifications:
RoHS



JILN Quality Control:

Since company foundation of the 2000, we emphasize canonical management and high-quality requirements. We has already acquired ISO9001, ISO14001international quality, environment and management systems certification.
The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal blocks). All items are in line with EU RoHS and REACH environmental requirements.

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 4

Exhibition&Visiting:

Every year we attend the domestic and oversea famous electronics fair in order to promote JILN's new proudcts and brand value.
JILN committed to providing competitive solutions and diversified products of high quality to customer.

0.8mm Board To Board Connector Female Header SMT Type LCP Material

Our services:

  1. Specialized in pcb connectors over 15 years.
  2. Over 10 years experienced Engineer support OEM&ODM order.
  3. All molding stampling,tooling and electroplating processes completed in-house,
  4. Fast delivery services help customer satifisfaction rate reach 99%.
  5. Cooperation with FCI,Phoniex,Samsung,SIEMENS,PHILPS,OMRON over 5 years.
  6. Prompt delivery(3-5 work days),small MOQ(100pcs) .
  7. Hight quality,rich experienced,excellent serivce will be your reliable connector solution specialist.
  8. Used in the most of home appliances,computer,PCB,LCD,TV
  9. Our factory has over decades manufacturing experience.
  10. We can provide customers with over 10 sorts and 60,000 different specification connectors parts.

FAQ:

Q1: Why choose our company?

A:1. Professional manufacturer since 2001, provide various kinds of precision cards, connectors and combination cables.

2. Our MOQ is: 100 PCS(1 PCS for sample).

3. Good quality, competitive price with best service.

4. Available for ODM/OEM order.

5. Mainly customer:

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 6SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 7

SMT U Polyester PA6T Female Header Connector 500VAC Dual Row Female Header Reel 8

Q2: How about samples?
A: 20 Piece free sample is available, but you have to pay the freight fees.

Q3: What is your price term & payment terms?
A: 1. Our usual price term is EXW,FOB Shenzhen or FOB Hongkong, but other terms is available too.
2. Payment terms: T/T, Paypal and other terms.

Q4: What about your delivery time?
A: Usually 7-10 working days. If you are very urgent, we can negotiate.

Q5: What certificates do your factory have?
A: UL, SGS, ISO9001:2008, ISO14001:2004 etc.



Shipping ways:

Various shipping ways: FEDEX , DHL ,UPS and so on.
HONGKONG port ,we can choose it according to your request.
We can send products to your agent from Guangdo province China which is free shiping fee so that you can save the cost.

For more details and latest price, please feel free to contact us.
