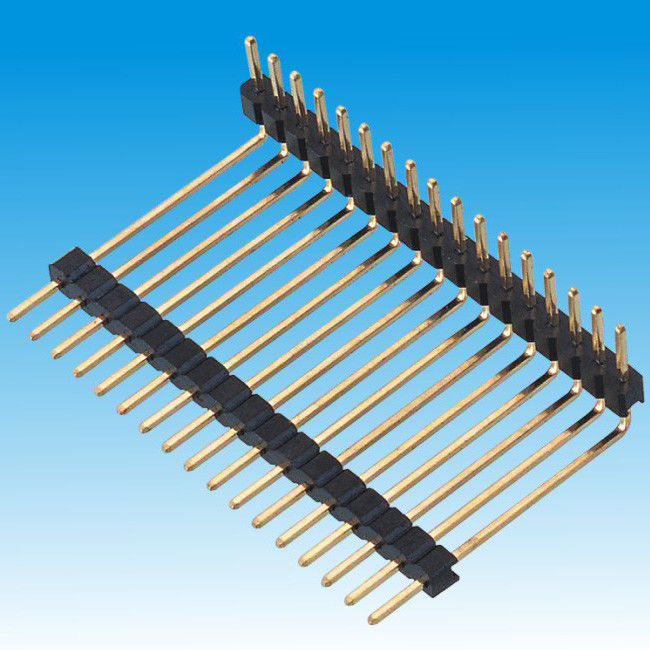

Universal 2mm Pitch Pin Header Board Single Row Electrical Connector

Basic Information
Place of Origin: China
Brand Name: JiLN
Certification: ISO1400
Model Number: 132021XXXNG0XXXXX01
Minimum Order Quantity: 1000
Price: 0.01-1USD
Packaging Details: Tube/Tray
Delivery Time: 7-10 Working Days
Payment Terms: T/T
Supply Ability: 30000000PCS per Month
Current Rating: 1.5AMP Operating Temperature: -40℃ To+105℃
Resistance: 20mΩ Max Material: Brass
Type: Pin Header Color: Black
Application: PCB
High Light:

right angle pcb header

,

single row pin header

0.8*1.2mm Board Spacer Dual Row SMT

2.00mm Pin Header Board Spacer Single Row Straight Right Angle



Pin header is a type of electrical connector, this connectorare widely used in electronic or instrumentation of PCB (Print Circuit Board) function as bridge between two PCBs which were blocked, and used to take current or signal transmission

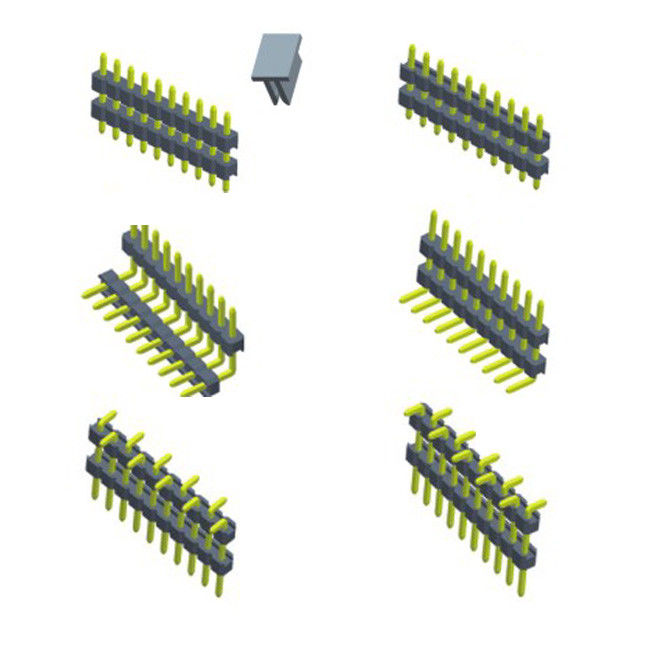

Normally pin headers are pin through hole (PTH) type, but surface-mount technology (SMT) versions of one and two row pin headers also very typically.In the latter case the solder sides of the pins are simply bent on a 90 degree angle so as to be soldered to a solder plane. On single row pin headers the pins are bent alternating to one side or the other, on dual row pin headers the pins are simply bent outwards. If pin headers are optional, the PTH variant is often chosen for ease of manual assembly. Pin headers can be either straight or angled. The latter form is often used to connect two boards together.



SPECIFICATION:

1. Rated Current: 1.5AMP

2. Contact Resistance: 20mΩ Max

3. Withstand Voltage: 500V AC/DC

4. Insulation Resistance: 1000mΩ Min

5. Operation Tempature: -40℃-+105℃

6. Contact Material: Brass

7. Contact Plating: Au or Sn over 50 u" Ni

8. Insulator Material: Polyester(UL94V-0)

9. Stand: PA6T

10. Max.Processing Temp: 230℃ for 20-30 Seconds(260℃ for 10 Seconds)
