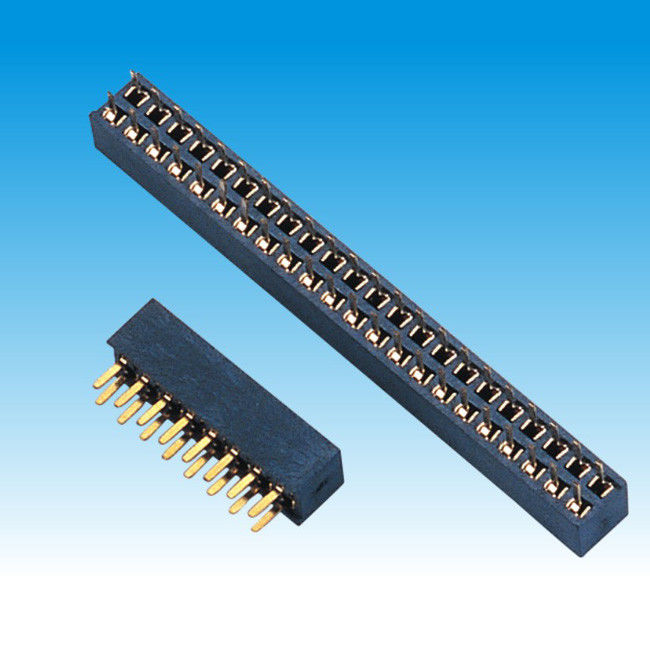

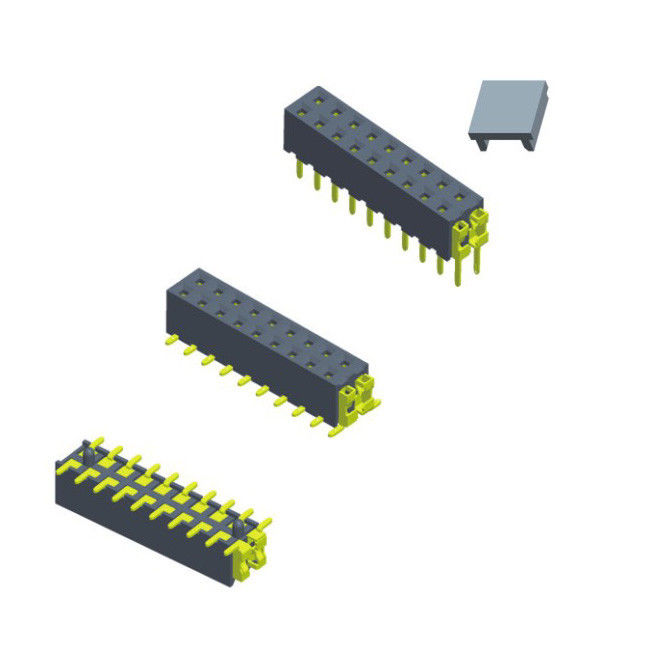

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 2343-02XXXNXXSU04
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

pin header female

,

right angle female header

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type



Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Straight
Operation Temperature: -40 ℃ to +105 ℃

2343-02XXXNXXSU04 W4.5 PC2.8.pdf

Company Information:



Shenzhen Jinling Electronics Co.,Ltd , Which is Global designer and manufacturer of industry standard and custom connectors,was established 2001 and specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.We always follow the guideline of specialization and automatization since the establishment.



Our business concept:integrity,gratitude and responsibility.

Our business strategy:quality first,customer first,excellence,team work!

Our service philosophy:speed,precise,considerate,carefully,elaborately,diligently.

Our business mission:creating value for customers,creating profits for shareholders,creating happiness for employees.

Profession is our service for customers: innovation is our promise to customers integrity is our responsibility for customers.

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 0

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 12.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 2

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 3

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements

2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 4



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).



2.0 mm Pitch H 4.3 Dual Row Female Header Connector Straight Type 5



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
