2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact

Basic Information
Place of Origin: China
Brand Name: JILN
Certification: UL/CUL/Rosh/SGS
Model Number: 235801XXXNXXMUX01(2)
Minimum Order Quantity: 500pcs
Price: negotiable
Packaging Details: Tube packing/PE bag packing
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 8000000Kpcs
Insulator Material:: Polyester Rated Current: 1 AMP
Withstand Voltage: 500V AC/DC Insulation Temperature: -40℃~+105℃
High Light:

pin header female

,

female pin header connector

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact


Product description:

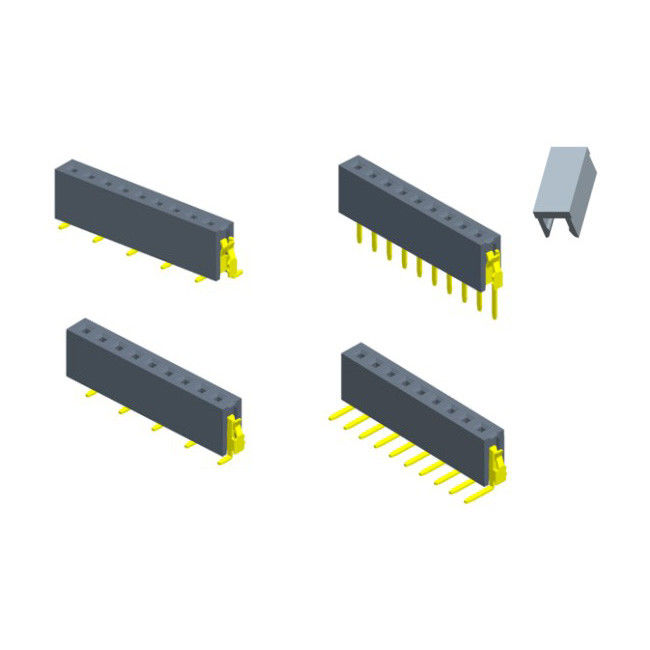

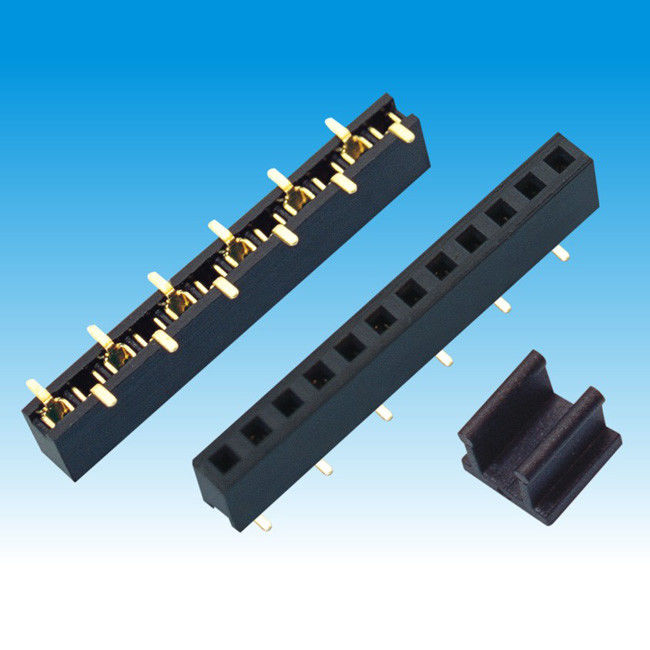

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 02.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 1

Specifications:

Contact Material Phosphor Brass
Insulator Material PA9T/LCP
Contact Plating Au or Sn over 50U"NI
Withstanding Voltage 500V
Current Rating 1A
Insulation Resistance 1000MΩ Min
Package : Tube packing
soldering type Right Angle
Operation Temperature: -40 ℃ to +105 ℃

235801XXXNXXMUX01(2).pdf

Company Information:



Shenzhen Jinling Electronics Co.,Ltd ,  specialized in manufacturing of precision Board to Board, Wire-to-board connectors,sim card socket, terminal blocks and cable assemblies for computer and all kinds of consumer electronics.

Company history:

In July,2004, Shenzhe Jinling Electronic CO., Ltd was established, the company focused on connector metal stamping mold R&D , manufacturing and plastic mold and assembly.

In June,2005 the company has passed the CQC certifications ISO9001:2008 and ISO14001:2004.

Companies adhere to the quality as the center of the business philosophy, but also attaches great importance to environmental protection. The company passed the ISO9001 quality management system and ISO14001 environmental management system, Authentication, our laboratory has a large number of advance detection instruments and equipment, access to UL, VDE,CQC,CBSGS,ROHS and other certificates.

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 2

Production Capability:



The factory with area of 20,000 square meters and has about the total number of employees 600 people and owns 30 sets precision mold processing equipment from Taiwan, 34 sets precision plastic injection machine from Taiwan& Japan, as well as 24 sets high –speed precision punch, more than 500 sets various types of plastic molds and more than 240 sets hardware terminal molds,35 sets laboratory testing equipments and over 200 sets machines for automatic assembly that can provide customers with over 10 sorts and 20,000 different specification connectors parts, company handles import-export rights. and up to 40% products are exported to Euro-American countries.

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 32.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 4

Complete Testing Equipment:

To provide high quality and best performance -to -price ratio production for customers, we have realized integrated production from plastic and hardware terminals, terminals,plating, design and development of mold, precision plastic ejection and molding and high speed precision hardware punching, to the automatic assembly of products.

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 5

Certifications:

The company main ten series products obtained American UL & CUL certification, with the No. E362810 and No.E472355, E484895(terminal block). All items are in line with EU RoHS and REACH environmental requirements

2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 6



FAQ:



Q: What is the MOQ?
A: Our MOQ is: 1000 PCS(1 PCS for sample).



2.0 mm Height 5.8 Single Row Female Header Connector SMT U Type Contact 7



·Shipping

1. If goods is not large:Fedex .DHL.EMS.UPS,TNT,ect express shipping method.

2. If goods is large:Sea or Air shipping method
